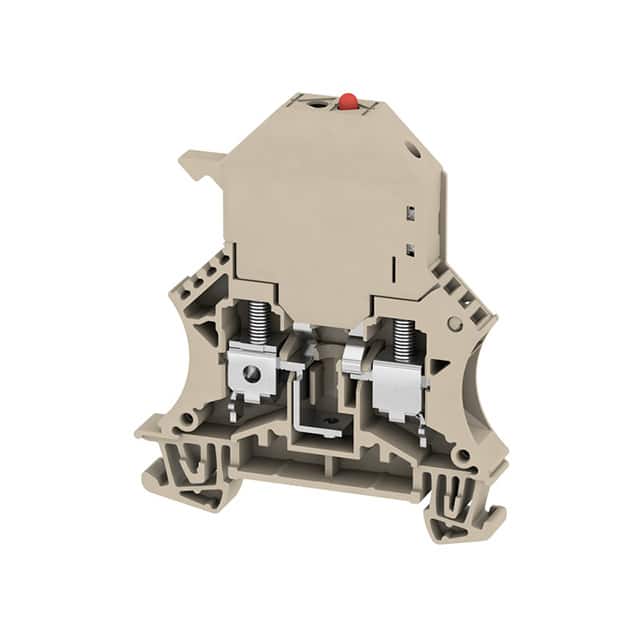

The Weidmüller WSI 6/LD 30-70V DC/AC (order number 1012200000) is a modular disconnect fuse terminal block from the W-series. It features a screw-type termination and snap-on mounting onto a TS 35 DIN rail. The insulating material is Wemid, colored dark beige, with a flammability rating of V-0 according to UL 94.
This terminal block is designed for use with standard 1" x 1/4" cartridge fuses. It includes an integrated LED indicator with a function voltage range of 30-70 V DC/AC. The rated current is 6.3 A, and the rated voltage is 500 V. The wire cross-section range is 0.5 mm² to 10 mm² (solid or flexible).
The terminal measures 72 mm in height, 60 mm in length, and 7.9 mm in width, with a weight of 21.5 g. The clamping screw is M3.5 with a recommended tightening torque of 0.8 to 1.6 Nm. The operating temperature range is -50°C to +120°C.
This component is supplied in a standard package quantity of 50 pieces. It requires an end plate for installation. The connection direction is from the side, and it is not explosion-tested for Ex e environments.
The rated current is 6.3 A according to IEC standards, and 10 A according to CSA.
The maximum wire cross-section is 10 mm² (solid or flexible).
It uses a 1" x 1/4" cartridge fuse.
The operating temperature range is -50°C to +120°C.
Yes, an end plate is required for installation.
The mounting type is snap-on onto a TS 35 DIN rail.
The LED indicator function voltage range is 30-70 V DC/AC.
