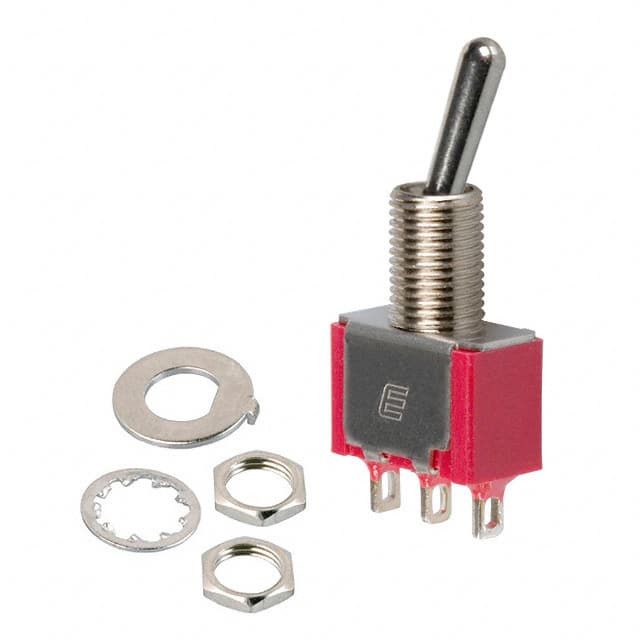

100SP1T1B1M1QEH The E-Switch 100SP1T1B1M1QEH is a single pole double throw (SPDT) toggle switch. It features a 5A current rating and 28V voltage rating.
Mfr Part #:

100SP1T1B1M1QEH

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch 100SP1T1B1M1QEH is a single pole double throw (SPDT) toggle switch. It features a 5A current rating and 28V voltage rating.
✓ Total Stock: 198 pcs
$ Price Range: $0.75

100SP1T1B1M1QEH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
198 pcs
On Request
198 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

100SP1T1B1M1QEH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

100SP1T1B1M1QEH Description

Short technical summary and product information.

This E-Switch 100SP1T1B1M1QEH is a miniature toggle switch designed for panel mounting. It offers a single pole double throw (SPDT) configuration with a non-illuminated standard round actuator.



The switch is rated for 5A at 28V and features solder lug termination. It operates within a temperature range of -30°C to 85°C and has epoxy sealed terminals for added durability.



The panel cutout required is circular with a 6.35mm diameter, and the bushing thread is 1/4-40. This model is non-illuminated and features a standard On-On switching function.

100SP1T1B1M1QEH Quick Information

Product Type: Toggle Switch
Canonical Name: E-Switch 100SP1T1B1M1QEH SPDT Toggle Switch
Subcategory: Toggle Switch

100SP1T1B1M1QEH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

100SP1T1B1M1QEH Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

100SP1T1B1M1QEH Features

  • Single pole double throw (SPDT) circuit.
  • Rated for 5A current and 28V voltage.
  • Panel mount with solder lug termination.
  • Operates from -30°C to 85°C.
  • Epoxy sealed terminals for durability.

100SP1T1B1M1QEH Applications

  • Ideal for control panel switching.
  • Suitable for industrial equipment.
  • Used in electronic device interfaces.
  • Applicable in test and measurement gear.

100SP1T1B1M1QEH FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the E-Switch 100SP1T1B1M1QEH toggle switch?

The E-Switch 100SP1T1B1M1QEH toggle switch has a current rating of 5A.

What is the voltage rating for the 100SP1T1B1M1QEH?

The voltage rating for the 100SP1T1B1M1QEH is 28V.

What type of mounting does the 100SP1T1B1M1QEH support?

The 100SP1T1B1M1QEH supports panel mounting.

What is the operating temperature range for this toggle switch?

The operating temperature range for this toggle switch is -30°C to 85°C.

What is the circuit configuration of the 100SP1T1B1M1QEH?

The 100SP1T1B1M1QEH has a SPDT (Single Pole Double Throw) circuit configuration.
