| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination |

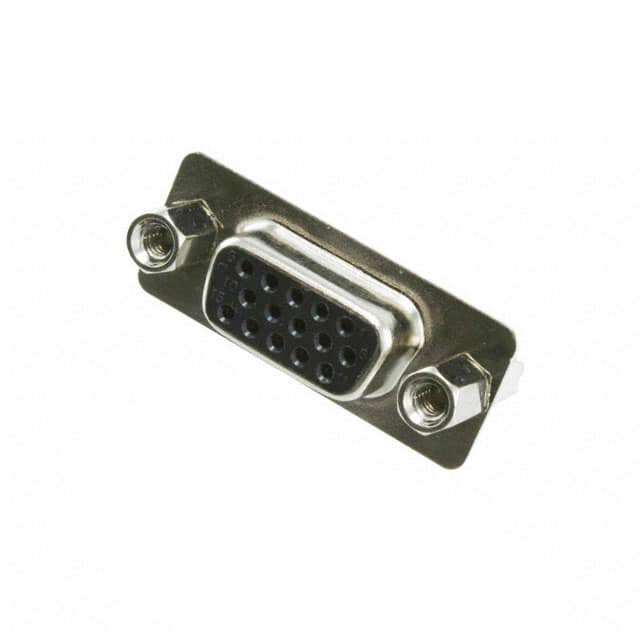

The Amphenol ICC 10090929-S154VLF is a high density D-Sub receptacle connector designed for space-saving applications. It has 15 female sockets arranged in 3 rows with a shell size of 1 (DE, E) High Density. The connector uses through hole mounting and solder termination for reliable PCB attachment.
The contacts are signal type with a gold flash finish, offering corrosion resistance and reliable signal integrity. The current rating is 2.5A per contact. The shell is made of steel with nickel plating, and the insulator is rated UL94 V-0 for flame retardancy.
A board lock feature ensures secure retention during soldering and assembly. The flange includes board side (4-40) and mating side female screwlock (4-40) for secure mating. This connector is suitable for industrial, data communication, and other applications requiring a compact and robust D-Sub connection.
15 positions.
2.5A per contact.
Through hole mounting.
Gold flash.
Steel, nickel plated.
UL94 V-0.
Board lock.
