| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Termination Style | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Termination Style |

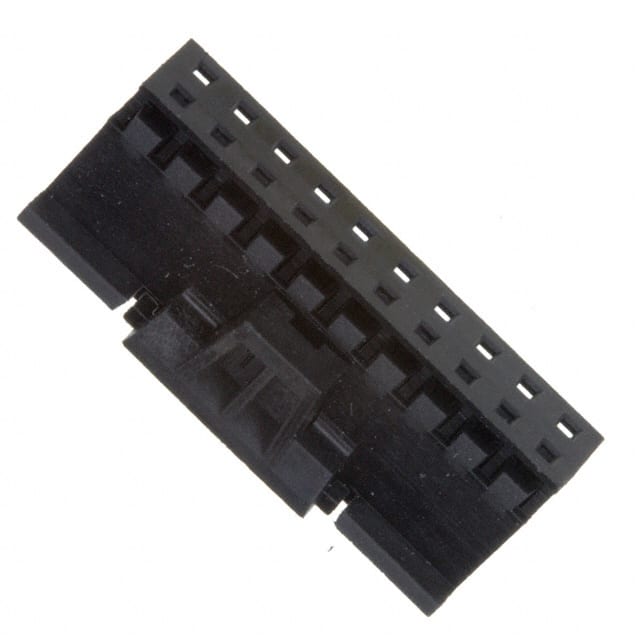

The Amphenol ICC 10073599-020LF is a 20 position rectangular connector housing designed for wire-to-wire applications. It features a 2.00mm pitch and 2 rows with 0.079" (2.00mm) row spacing. The housing is a receptacle type that accepts female socket contacts and uses a latch lock fastening mechanism for secure mating.
This housing supports crimp termination and is intended for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-board connections where a reliable, disconnectable interface is required. The black housing is rated for an operating temperature range of -55°C to 125°C.
The 20 position, 2 row configuration with 2.00mm pitch is common in wire-to-wire applications requiring moderate density. The latch lock fastening provides a positive retention force to prevent accidental disconnection in vibration-prone environments.
20 positions in 2 rows.
2.00mm (0.079") pitch with 0.079" (2.00mm) row spacing.
Free hanging (in-line) mounting.
-55°C to 125°C.
Crimp termination for female socket contacts.
