| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,330 pcs
|
1330 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |

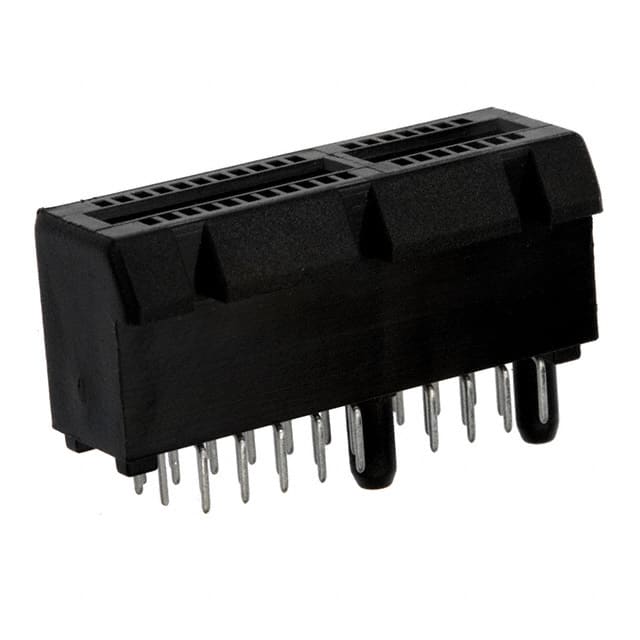

The Amphenol ICC 10018784-10100TLF is a PCI Express female card edge connector designed for reliable interconnection in computing and peripheral applications. It features 36 positions arranged in 2 rows with a 1.00mm (0.039") pitch, enabling high-density signal routing. The connector uses dual readout cantilever contacts made of copper alloy with a 15.0µin (0.38µm) gold finish for robust electrical performance and corrosion resistance.
This connector is through hole mounted with staggered solder termination, providing secure mechanical attachment to the PCB. It includes a board guide and locking ramp for accurate alignment and retention during mating. The operating temperature range is -55°C to 85°C, suitable for a wide variety of environments. The housing is black and the card thickness accepted is 0.062" (1.57mm).
The pitch is 1.00mm (0.039").
It has 36 positions arranged in 2 rows.
Through hole with staggered solder termination.
-55°C to 85°C.
Gold, 15.0µin (0.38µm) thickness.
0.062" (1.57mm).
Board guide and locking ramp.
