| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,220 pcs
|
3220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

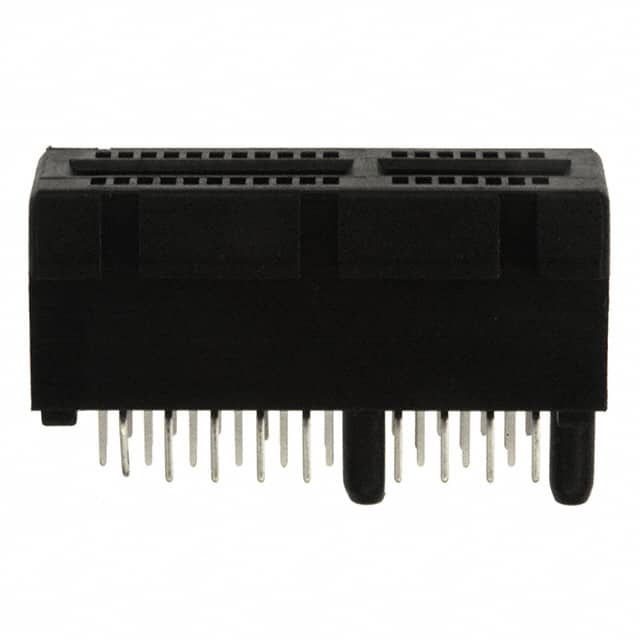

This PCI Express female edge connector is designed for high-speed data applications. It features 36 positions arranged in 2 rows with a 1.00mm pitch, providing a dual read-out configuration. The connector uses cantilever contacts made of copper alloy with a 0.38µm gold finish, ensuring reliable signal integrity.
The through-hole mounting style with staggered solder terminals offers secure attachment to the PCB. Integrated features include a board guide and locking ramp for stable mating. The connector is rated for an operating temperature range of -55°C to 85°C.
The housing is black in color and constructed for durability in various environments. This connector is suitable for PCI Express interface applications requiring compact and reliable connections.
This connector has 36 positions.
The pitch is 1.00mm (0.039 inches).
The connector uses through-hole mounting.
The operating temperature range is -55°C to 85°C.
The contacts are gold plated with a thickness of 0.38µm (15.0µin).
This connector is designed for PCI Express card type.
The connector includes a board guide and locking ramp.
