| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

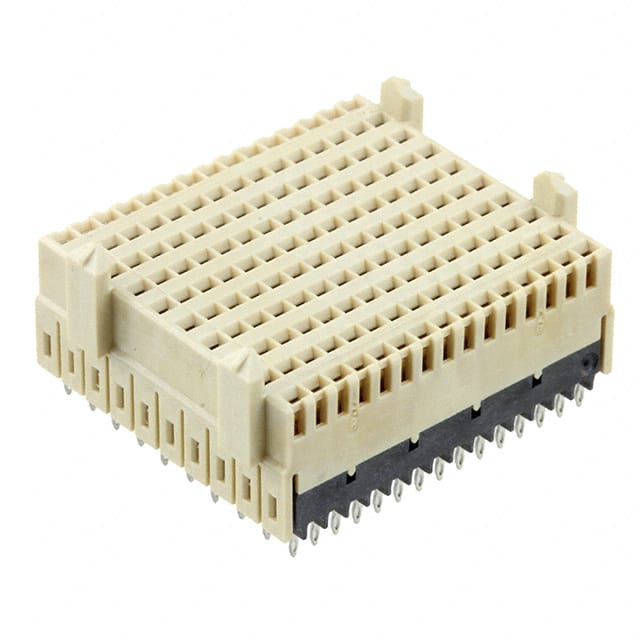

The Amphenol ICC 10016537-101LF is a high speed backplane receptacle designed for daughtercard applications. It provides 150 positions with female sockets arranged in 15 rows and 10 columns at a 1.40mm pitch.
This connector uses through hole press-fit termination for reliable solderless connection to the PCB. Contacts are finished with 30.0µin (0.76µm) gold for corrosion resistance and reliable signal integrity. The housing is natural in color.
All 150 positions are loaded, making this connector suitable for high-density backplane interconnect systems requiring high speed signal transmission.
The connector has 150 positions, all loaded, arranged in 15 rows and 10 columns.
The pitch is 1.40mm (0.055 inches).
Mounting type is through hole with press-fit termination.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The connector is designed for daughtercard applications.
