| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

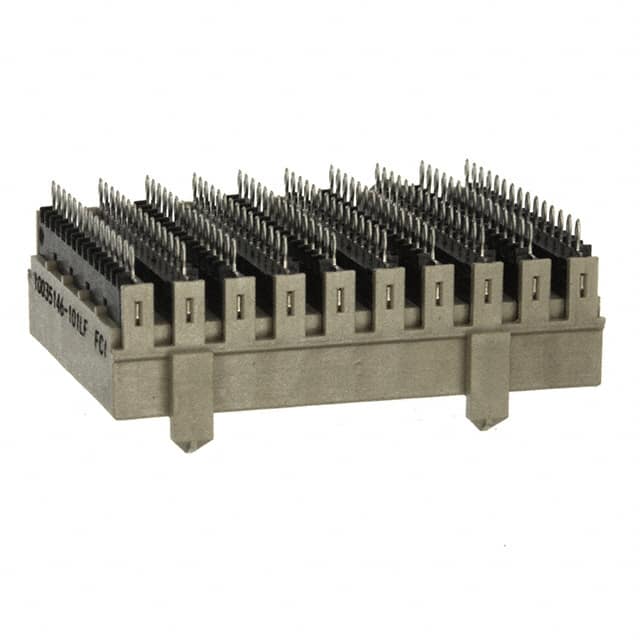

The Amphenol ICC 10035146-101LF is a high speed receptacle connector intended for daughtercard applications. It features 150 positions arranged in 15 rows and 10 columns with a 1.40mm pitch. The contact layout includes 50 differential pairs and 50 ground contacts, supporting high-speed signal integrity.
The connector uses a through hole mounting type with press-fit termination for a reliable solderless connection. Female sockets have a gold contact finish of 30.0 microinches (0.76 micrometer) for corrosion resistance and reliable electrical performance. The housing is natural in color.
This specialized backplane connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited floor life). It is designed for use in high speed digital systems requiring high density interconnection.
It is a receptacle with female sockets, high speed style, for daughtercard usage.
150 positions, all loaded, arranged in 15 rows and 10 columns.
The pitch is 1.40mm.
Through hole mounting with press-fit termination.
Gold contact finish with 30.0µin (0.76µm) thickness.
