| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
151 pcs
|
151 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination Style |

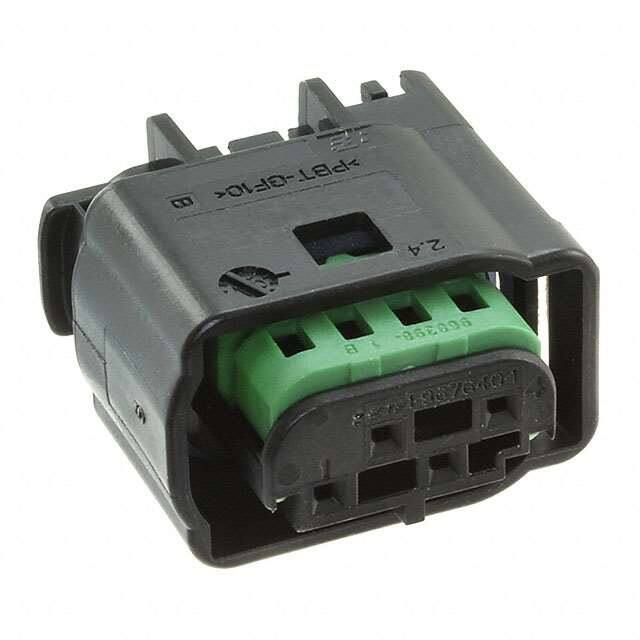

The TE Connectivity MQS (Micro Quadlok) 1-967640-1 is a 4-position receptacle housing designed for use in automotive and industrial applications. This housing accepts female socket contacts and features a latch holder fastening mechanism for secure mating. The housing is made of PBT-GF15 (Polybutylene Terephthalate, Glass Filled 15%) and is black in color.
With a 3.1 mm pitch and 2 rows, this free hanging (in-line) housing allows for easy wire-to-wire connections. It supports crimp termination and has an operating temperature range of -40°C to 120°C. The housing is designed for use with MQS contact systems and includes a retainer for secondary locking.
The datasheet indicates coding options for polarization (B, C, D, E, F, Z) and a protective cover option. The housing is RoHS compliant and REACH unaffected, though these are unverified.
4 positions.
3.1 mm.
Free hanging (in-line).
-40°C to 120°C.
PBT-GF15 (Polybutylene Terephthalate, Glass Filled 15%).
Latch holder.
Black.
