| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Housing Material | |
| Lead Spacing | |
| Mating Part Number | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination Style |

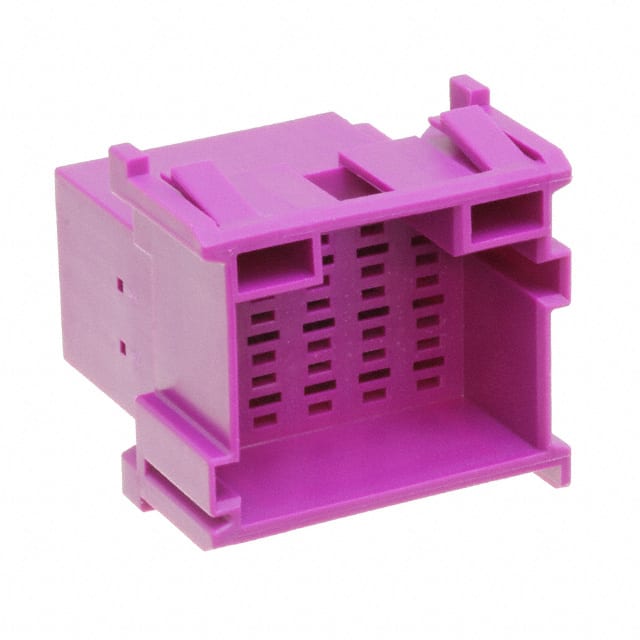

The 1-967628-1 is a 15-position rectangular plug housing from TE Connectivity Deutsch Connectors. It features a 5.00mm pitch and 3 rows with a row spacing of 5.51mm. The housing is designed for free hanging (in-line) mounting and accepts male pin contacts with crimp termination. The housing material is PA66-GF13 / PA6-GF15, and the part is available in purple. The operating temperature range is -40°C to 120°C. Mating connectors are 1355071 and 1355073. The datasheet indicates this housing is part of the TAB HOUSING (2.8mm) family and includes a secondary locking device for secure mating.
15 positions.
5.00mm.
Free hanging (in-line).
3 rows.
-40°C to 120°C.
PA66-GF13 / PA6-GF15.
Crimp.
