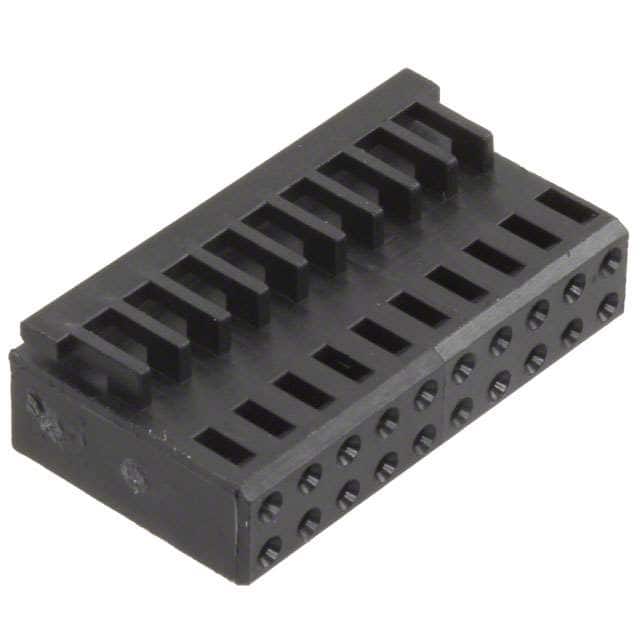

1-926476-0 TE Connectivity 1-926476-0 is a 20-position, 2-row, 2.54mm pitch female socket receptacle housing. It features free hanging mounting and crimp termination.
Mfr Part #:

1-926476-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-926476-0 is a 20-position, 2-row, 2.54mm pitch female socket receptacle housing. It features free hanging mounting and crimp termination.
✓ Total Stock: 3,000 pcs

1-926476-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-926476-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
View Similar Products (0)

1-926476-0 Description

Short technical summary and product information.

The TE Connectivity 1-926476-0 is a rectangular connector housing designed for use with female socket contacts. It accommodates 20 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The housing is black and supports free hanging (in-line) mounting with crimp termination. It operates over a temperature range of -65°C to 105°C. This housing is suitable for wire-to-wire applications requiring a reliable connection in a compact form factor.

1-926476-0 Quick Information

Product Type: Rectangular Connector Housing
Canonical Name: TE Connectivity 1-926476-0 20 Position 2.54mm Pitch Female Socket Receptacle Housing
Subcategory: Rectangular Connector Housings

1-926476-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-926476-0 Features

  • 20 positions in 2 rows.
  • 2.54mm pitch and row spacing.
  • Free hanging in-line mounting.
  • Crimp termination for female sockets.
  • Operating temperature -65°C to 105°C.

1-926476-0 Applications

  • Wire-to-wire connector assemblies.
  • Cable harness manufacturing.
  • Prototyping and production wiring.
  • Industrial equipment interconnects.

1-926476-0 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-926476-0 have?

20 positions.

What is the pitch of this connector housing?

2.54mm (0.100").

What mounting type does this housing support?

Free hanging (in-line) mounting.

How many rows of contacts does it have?

2 rows.

What is the operating temperature range?

-65°C to 105°C.

What color is the housing?

Black.

What contact termination type is used?

Crimp termination for female socket contacts.

1-926476-0 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
102387-4
102387-4
TE Connectivity
TE Connectivity 102387-4 is a 20-position rectangular connector housing with 2.54mm pitch. It features a receptacle design with female socket contacts and crimp termination.
