| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,223 pcs
|
3223 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Glow Wire Performance | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style |

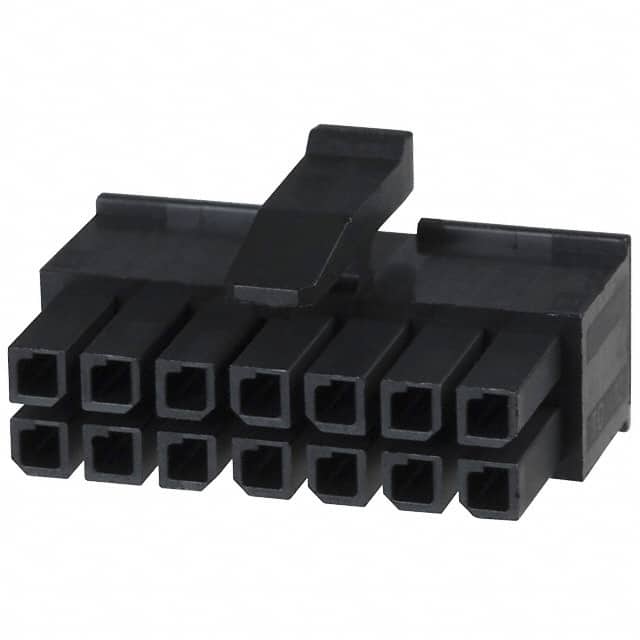

This receptacle housing is part of TE Connectivity's Micro Mate-N-Lok family, designed for wire-to-board or wire-to-wire connections. It accommodates 14 positions in a dual-row configuration with 3.00mm pitch and 3.00mm row spacing. The housing is made of PA66/6 and PA66 materials with UL94 V-0 flammability rating and glow wire performance of 750°C (GWEPT) and 850°C (GWFI) per IEC 60335-1.
The latch lock fastening type ensures secure mating with counterpart header assemblies (TE 794615 or 794616). The free hanging (in-line) mounting style allows flexible cable assembly, and the crimp termination accepts TE 794606 or 794607 terminals. The housing is black and operates over a temperature range of -40°C to 105°C.
This connector is suitable for applications requiring high reliability and safety compliance, including appliances and industrial controls. The dual-row design provides space-efficient connections. No pricing or stock data is available; verify compliance with manufacturer documentation.
14 positions in a dual-row configuration.
3.00 mm
Free hanging (in-line) mounting.
-40°C to 105°C
UL94 V-0
TE 794606 or 794607 terminals.
PA66/6 and PA66 with glow wire performance of 750°C GWEPT and 850°C GWFI.
