| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
947 pcs
|
947 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| GWFI | |
| Glow Wire Test | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing |

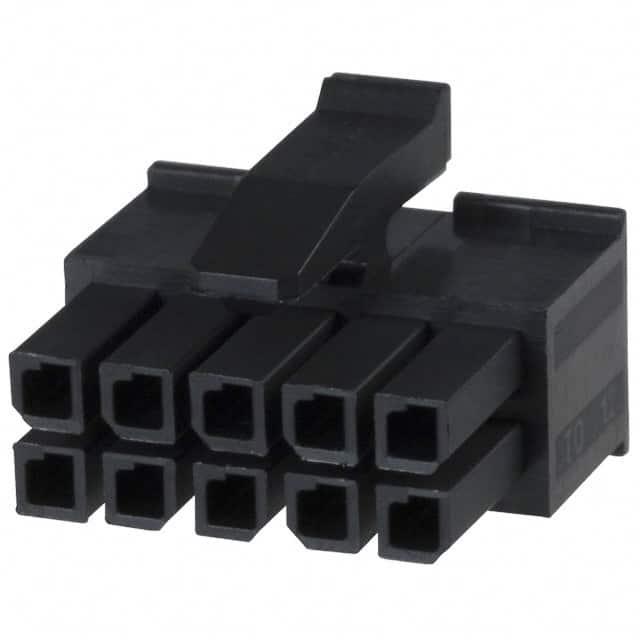

The TE Connectivity 1-794617-0 is a receptacle housing from the Micro MATE-N-LOK product line. It is designed for 10 circuits in a dual row arrangement with a 3.00mm centerline pitch, providing a compact and reliable interconnection solution. The housing accepts female socket contacts via crimp termination, allowing for custom wire harness assembly.
This housing features a latch lock fastening mechanism for secure mating with compatible headers, recommended as TE part numbers 794615 or 794616. The free hanging (in-line) mounting style enables flexible routing in wire-to-wire or wire-to-board applications. The black thermoplastic housing is made from PA66 material and meets UL94 V-0 flammability requirements, with a glow wire test performance of 750°C and GWFI of 850°C per IEC 60335-1.
The connector is rated for an operating temperature range of -40°C to 105°C, suitable for a wide variety of environments. Compatible terminals include part numbers 794606 and 794607. This connector housing is commonly used in consumer appliances, industrial equipment, and automotive applications where a robust, polarized connection is required.
This receptacle housing has 10 positions arranged in 2 rows.
The pitch is 3.00mm (0.118 inches) between contacts.
This housing is designed for free hanging (in-line) mounting, not for board mounting.
The operating temperature range is -40°C to 105°C.
RoHS compliance is listed as compliant, but this information is unverified from the source data.
