Mfr Part #:

1-747150-6

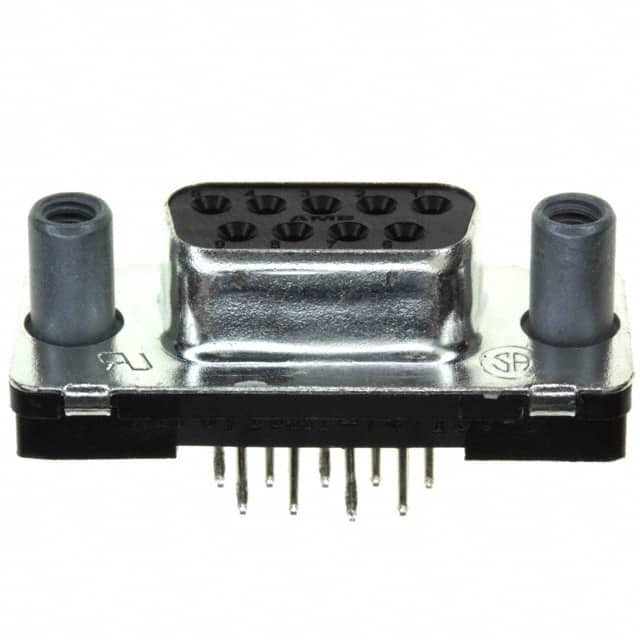

1-747150-6 is a D-Sub receptacle connector from TE Connectivity with 9 positions, female sockets, through hole mounting, and solder termination. It features gold plated contacts rated at 6A and a steel shell with tin plating.

✓ Total Stock: 53 pcs

$ Price Range: $6.29 - $10.55

1-747150-6 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
NTD Electronics ✓ Non-Authorised Inventory information	53 pcs On Request	53 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1-747150-6 Description

Short technical summary and product information.

1-747150-6 is a D-Sub receptacle connector manufactured by TE Connectivity. It features 9 positions arranged in 2 rows, with female socket contacts. The connector is designed for through hole mounting with solder termination, making it suitable for vertical PCB installation. The contacts are gold plated with a thickness of 30.0 microinches (0.76 micrometers), providing reliable signal transmission. The current rating is 6A per contact. The shell is made of steel with tin plating, and the connector layout is DE-9 (shell size 1). The flange feature includes mating side female screwlocks (4-40) for secure connection. The insulator material is rated UL94 V-0 for flammability. This connector is commonly used in serial communication interfaces, industrial control systems, and data acquisition equipment.

1-747150-6 Quick Information

Product Type: D-Sub Receptacle Connector

Series: 1-747150

Canonical Name: TE Connectivity D-Sub Receptacle Connector, 9 Position, Female Sockets, Through Hole, Solder Termination

Subcategory: D-Sub Receptacle Connector

1-747150-6 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1-747150-6 Estimated Pricing

Qty	Low	High
1+	$10.55	$10.55
10+	$9.50	$9.50
17+	$8.95	$8.95
51+	$8.72	$8.72
102+	$8.49	$8.49
255+	$7.57	$7.57
510+	$7.11	$7.11
1,003+	$6.29	$6.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-747150-6 Features

9 position D-Sub receptacle connector.
Gold plated contacts for reliable signal.
Through hole mounting with solder termination.
Steel shell with tin plating for shielding.
UL94 V-0 rated insulator material.

1-747150-6 Applications

Ideal for serial communication interfaces.
Used in industrial control systems.
Suitable for data acquisition equipment.
Applicable in test and measurement devices.

1-747150-6 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

9 positions.

What is the current rating?

6A per contact.

What is the mounting type?

Through hole.

What is the contact finish?

Gold, 30.0µin (0.76µm).

How many rows of contacts?

2 rows.

What is the shell material?

Steel, Tin Plated.

What is the flammability rating of the insulator?

UL94 V-0.

1-747150-6 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

1-5747150-4

TE Connectivity

TE Connectivity 1-5747150-4 is a 9-position D-Sub receptacle with female sockets, through hole mounting, and solder termination.

View Part

5750678-1
