| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Solder Process Capability (Wave) | |
| Tape & Reel | |
| Termination | |
| Termination Style |

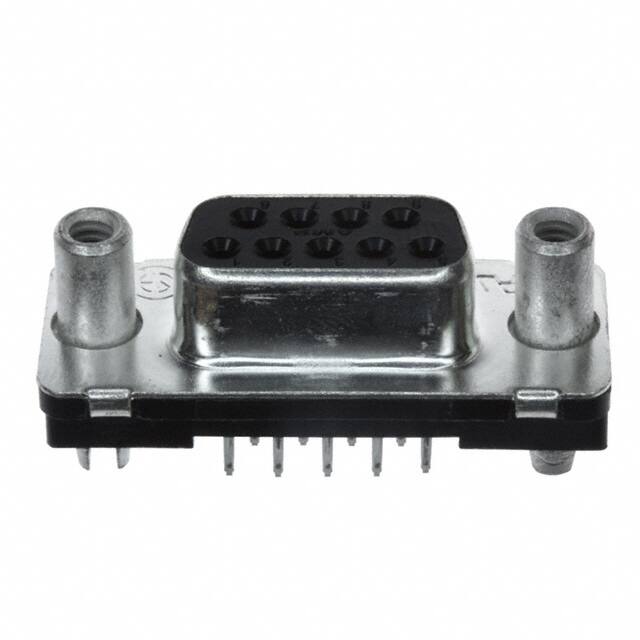

The TE Connectivity 5750678-1 is a 9-position D-Sub receptacle designed for signal connections. It features female sockets arranged in 2 rows, with a shell size of 1 (DE, E). The connector is mounted using through hole technology and terminated by solder. Contacts are gold plated with a thickness of 30 microinches (0.76 micrometers), ensuring reliable low-resistance connections. The shell is made of steel with tin plating, and the flange includes a mating side female screwlock (4-40) for secure mating. A board lock feature aids in retention during soldering. The insulator material has a flammability rating of UL94 V-0. The connector is wave solder capable up to 265°C. This part is compliant with EU RoHS Directive 2011/65/EU with exemption 6(c) (lead alloy in copper) and contains SVHC lead at 3.7% in component part per EU REACH. It is not classified as low halogen (contains Br or Cl > 900 ppm).
It has 9 positions arranged in 2 rows.
The current rating is 6A per contact.
It is through hole mounting with solder termination.
Gold finish with 30 microinches (0.76 micrometers) thickness.
Yes, compliant with EU RoHS Directive 2011/65/EU with exemption 6(c) for lead alloy in copper.
Yes, it features a board lock for PCB retention during soldering.
