| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

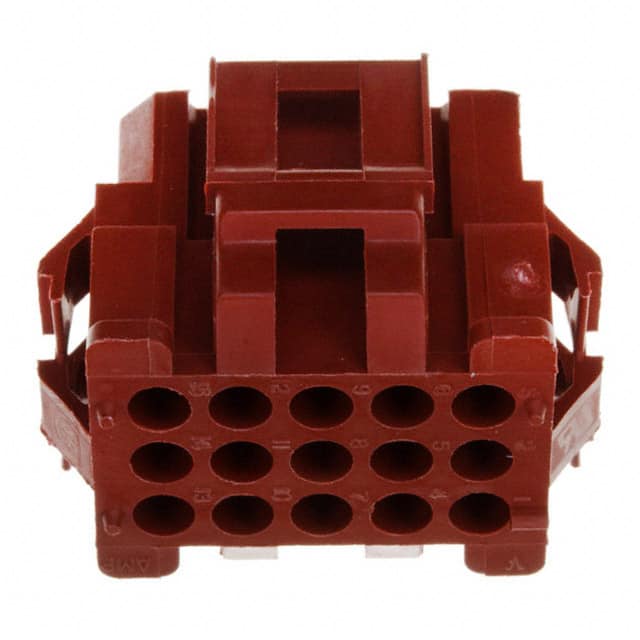

The TE Connectivity 1-640523-0 is a 15-position rectangular connector housing designed for wire-to-wire applications. It features a plug configuration with female socket contacts and a locking ramp fastening mechanism for secure mating. The housing is panel mount with snap-in installation, making it suitable for fixed or removable applications.
Key specifications include a pitch of 4.20mm and 3 rows with row spacing of 4.20mm. The housing accepts crimp-terminated contacts, allowing for field-installable wiring. It is available in black or red color options. The operating temperature range is -55°C to 85°C, supporting use in a variety of environments.
This housing is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited floor life). Note that compliance data is low-confidence as it has not been verified from an official source. No datasheet is currently available for detailed dimensional information.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.65 | $4.65 |
| 10+ | $3.65 | $3.65 |
| 25+ | $3.50 | $3.50 |
| 100+ | $3.19 | $3.19 |
| 250+ | $2.95 | $2.95 |
| 500+ | $2.81 | $2.81 |
| 1,000+ | $2.74 | $2.74 |
| 2,500+ | $2.54 | $2.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
4.20mm (0.165").
Panel mount, snap-in.
Female socket.
Locking ramp.
3 rows.
-55°C to 85°C.
