1-406541-7
TE Connectivity

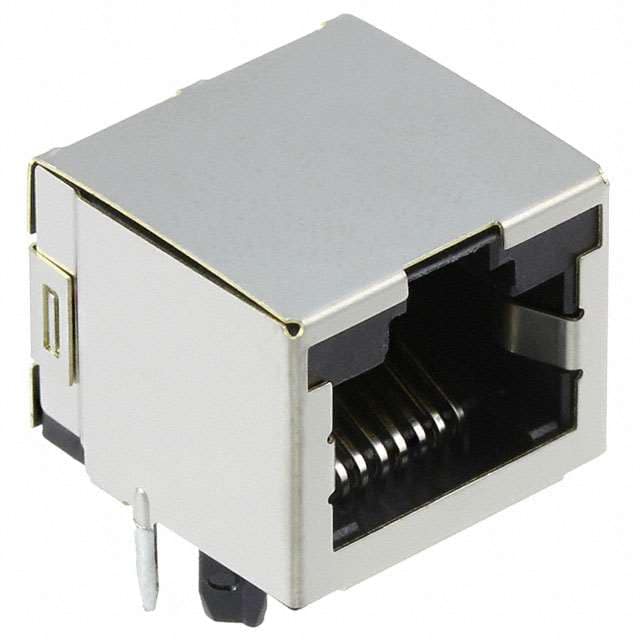

TE Connectivity 8P8C (RJ45) modular jack, 1 port, through hole, right angle, shielded with EMI finger. Cat5 rated, board guide feature.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |
The TE Connectivity 1-406541-8 is a single-port modular jack designed for Cat5 Ethernet applications. It features an 8p8c (RJ45) configuration with a right angle (90°) orientation for space-constrained designs. The connector is shielded with an EMI finger to reduce electromagnetic interference, ensuring reliable signal integrity.
The jack uses through hole mounting with solder termination for secure mechanical attachment. Contacts are made of phosphor bronze with a gold finish, providing excellent conductivity and corrosion resistance. A board guide feature aids in alignment during assembly. This connector does not include an LED indicator.
Typical applications include networking equipment such as routers, switches, and patch panels, as well as industrial control systems and telecommunications hardware. The Cat5 rating supports data rates up to 100 MHz, suitable for 10/100BASE-T Ethernet networks.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.71 | $5.71 |
| 10+ | $5.03 | $5.03 |
| 20+ | $4.72 | $4.72 |
| 50+ | $4.49 | $4.49 |
| 100+ | $4.27 | $4.27 |
| 200+ | $3.95 | $3.95 |
| 500+ | $3.72 | $3.72 |
| 1,000+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet).
Through hole.
Yes, shielded with EMI finger.
90° angle (right).
Gold.
Cat5.
No, it does not contain an LED.
