Mfr Part #:

1-406541-1

Name: 1-406541-1
Brand: TE Connectivity
SKU: 1-406541-1
Availability: InStock

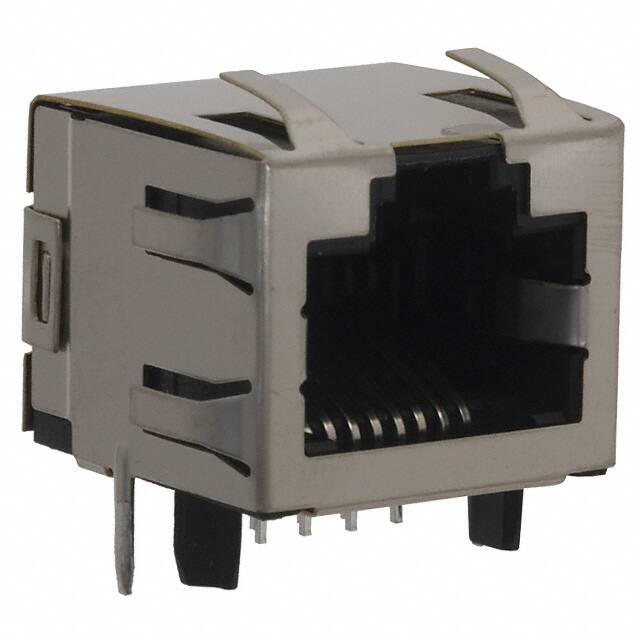

This TE Connectivity modular jack is a 1-port, 8p8c (RJ45) connector with right angle orientation and through hole mounting. It features shielded construction with EMI finger and gold-plated phosphor bronze contacts.

✓ Total Stock: 7,940 pcs

1-406541-1 Available from 8 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	3,511 pcs On Request	3511 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	2,400 pcs On Request	2400 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Tokyo Device ✓ Non-Authorised Inventory information	1,764 pcs On Request	1764 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	126 pcs On Request	126 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	103 pcs On Request	103 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	26 pcs On Request	26 pcs	On Request	1	On Request	On Request	09+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	5	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1-406541-1 Description

Short technical summary and product information.

The 1-406541-1 from TE Connectivity is a modular jack connector designed for Ethernet applications. It features an 8p8c (RJ45) configuration with a single port, right angle orientation, and through hole mounting for secure PCB attachment. The connector is shielded with an EMI finger to reduce electromagnetic interference, and it includes a board guide for easy alignment during assembly. Contacts are made of phosphor bronze with gold plating, ensuring reliable connectivity and corrosion resistance. This jack is rated for Cat5 performance, making it suitable for 10/100Base-T Ethernet networks. It does not include an LED indicator. The tab direction is up, and termination is via solder joints.

1-406541-1 Quick Information

Product Type: Modular Connector Jack

Canonical Name: Modular Jack, 8p8c (RJ45), Right Angle, Shielded, Through Hole

Subcategory: RJ45 Jack

1-406541-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1-406541-1 Features

8p8c (RJ45) configuration for Ethernet applications.
Right angle orientation for space-saving PCB layout.
Shielded with EMI finger for reduced interference.
Gold-plated phosphor bronze contacts for reliable connectivity.
Includes board guide for easy assembly.

1-406541-1 Applications

Ideal for 10/100Base-T Ethernet network interfaces.
Used in routers, switches, and network equipment.
Suitable for industrial control systems requiring shielded connections.
Can be used in patch panels and wall plates.

1-406541-1 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this modular jack have?

8p8c (RJ45, Ethernet), with 8 positions and 8 contacts.

What is the mounting type of this connector?

Through hole.

What is the orientation of this connector?

90° angle (right angle).

Is this connector shielded?

Yes, it is shielded with an EMI finger.

What is the contact finish and material?

Gold finish on phosphor bronze contacts.

Does this connector have an LED indicator?

No, it does not contain an LED.

What is the performance rating of this connector?

Cat5.

Category	Modular Connector Jacks
Manufacturer Name	TE Connectivity
Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Guide
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90° Angle (Right)
Ratings	Cat5
SVHC Present	Not Present
Shielding	Shielded, EMI Finger
Tab Direction	Up
Tape & Reel	Yes
Termination	Solder
Termination Style	Solder
