| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination Style |

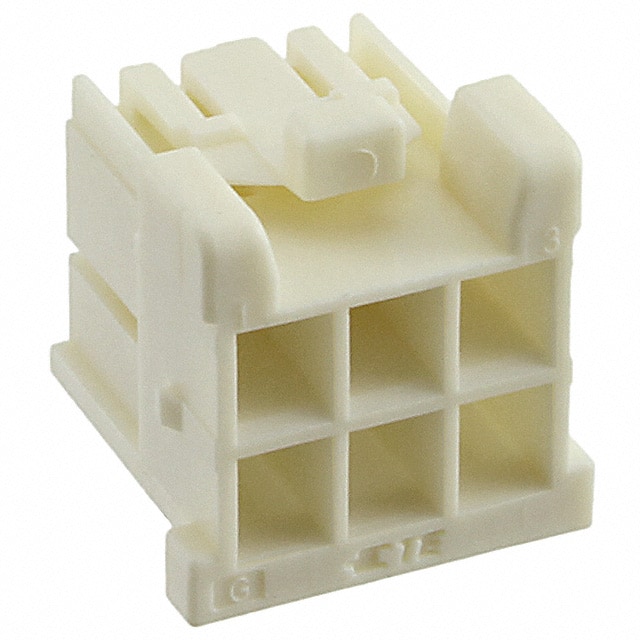

The TE Connectivity 1-1971905-3 is a 6-position plug housing from the GRACE INERTIA connector series. This housing accepts female socket contacts with crimp termination and features a 3.30mm pitch with a 5.20mm row spacing. The inertia locking mechanism helps ensure proper mating and prevents unintended disconnection.
The housing is designed for free hanging (in-line) mounting and includes a latch lock fastening type for secure connection. The operating temperature range is -30°C to 105°C. The housing material has a UL 94 V-0 flammability rating.
GRACE INERTIA connectors are suitable for wire-to-board applications in home appliances, air conditioners, and industrial controls. The dual beam contact design provides reliable contact and durability. Lanceless contacts prevent snagging during wire handling.
This connector housing has 6 positions arranged in 2 rows.
The pitch is 3.30mm (0.130").
The mounting type is Free Hanging (In-Line).
It accepts female socket contacts with crimp termination.
The operating temperature range is -30°C to 105°C.
