| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,365 pcs
|
1365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing |

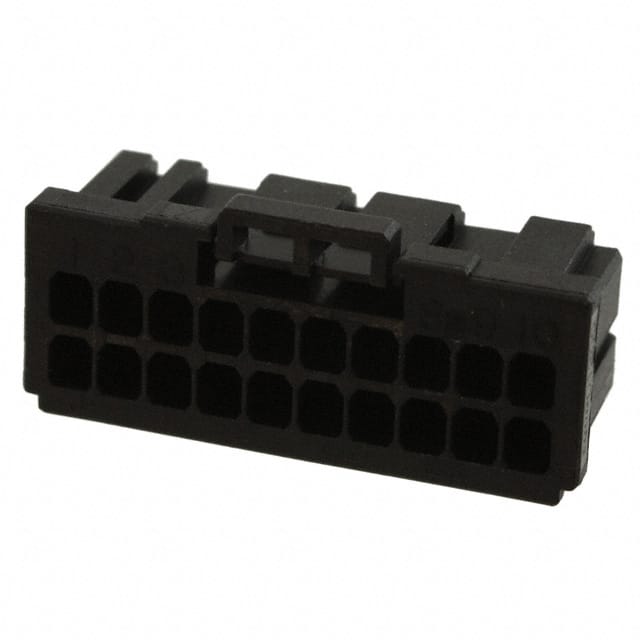

The TE Connectivity 1-1827864-0 is a rectangular connector housing designed for use in wire-to-wire or wire-to-board applications. It features a receptacle configuration with 20 female socket contacts arranged in 2 rows at a 2.50mm pitch, with a row spacing of 3.30mm. The housing uses a latch lock fastening type for secure mating and includes a polarizing key to ensure correct orientation during assembly.
This housing is intended for free hanging (in-line) mounting and accepts crimp termination contacts, making it suitable for field-installable or harness assembly applications. The black housing is rated for an operating temperature range of -55°C to 105°C.
As a connector housing, it does not include contacts; appropriate female socket crimp contacts must be ordered separately. The part is commonly used in industrial, automotive, and consumer electronics where a reliable, polarized connection is required.
20 positions arranged in 2 rows.
2.50mm pitch with 3.30mm row spacing.
Free hanging (in-line) mounting.
-55°C to 105°C.
No, it is a housing only. Female socket crimp contacts must be ordered separately.
