| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Mounting Type | |
| Number of Positions | |
| Output | |
| Terminal Type | |
| Washable |

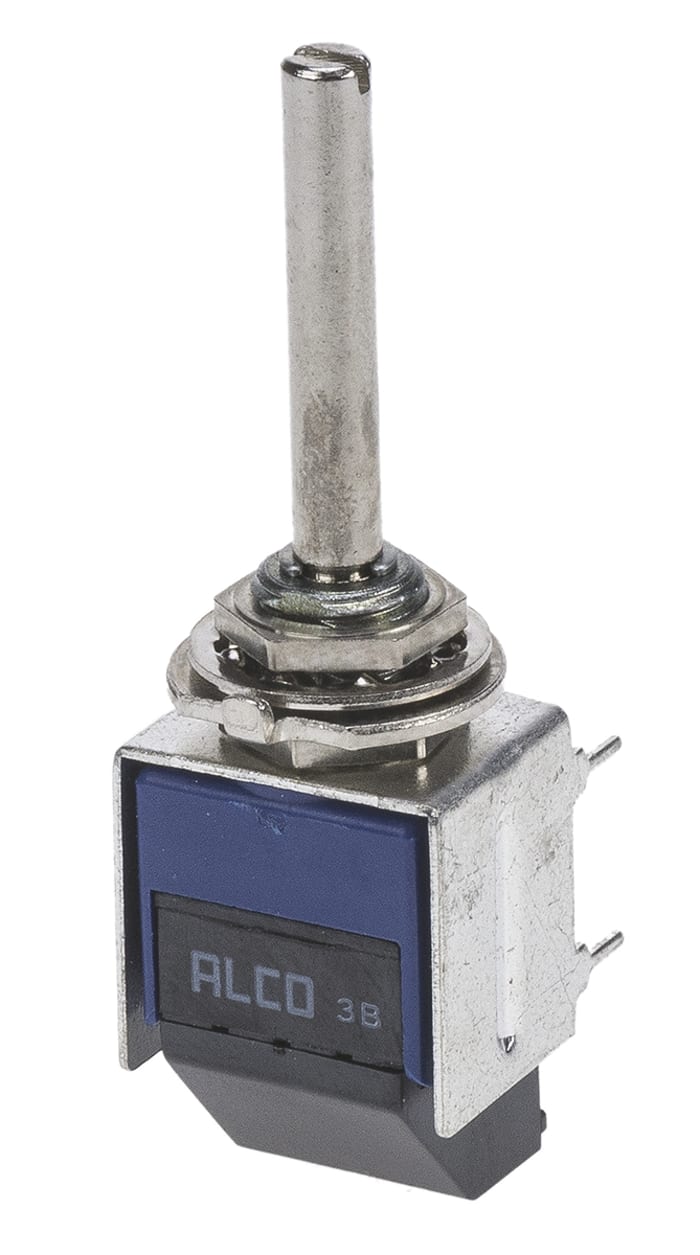

The TE Connectivity 1-1825008-2 is a miniature rotary coded DIP switch from the DR series. It features a through-hole mounting type and a rotary actuator with a metal shaft. This switch provides 16 positions and outputs in hexadecimal format (0-9, A-F), with an option for 10-position BCD output. The contacts are gold-flashed brass, designed for long operating life through pin-point sliding pressure. It is supplied with a metal bracket for additional support when PCB mounted. The shaft end has a screwdriver slot, allowing use without a knob, though a knob can be attached if needed. The case is made of polyester, and the shaft measures Ø3.2mm with a length of 19mm. This component is suitable for applications requiring precise digital input selection via a rotary interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has 16 positions.
The actuator type is rotary with shaft.
The case material is polyester.
No, it is not washable.
The shaft diameter is 3.2mm and length is 19mm.
