| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
97 pcs
|
97 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Color of Housing | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Seal Material | |
| Termination Style |

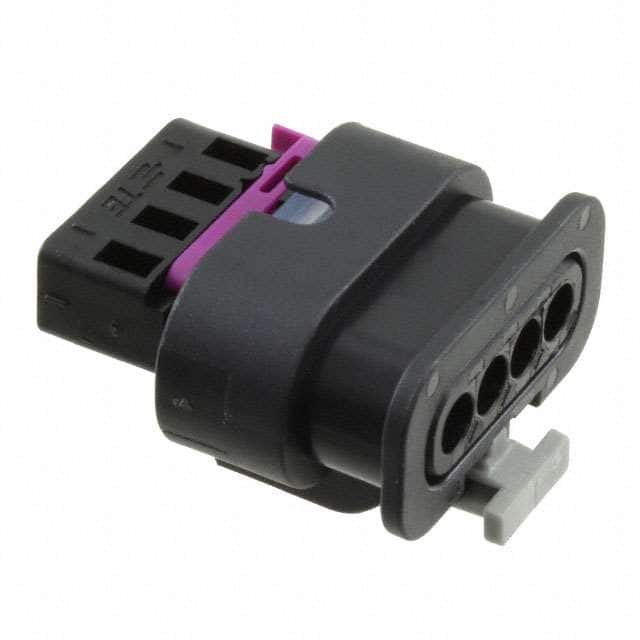

The TE Connectivity 1-1718645-1 is a 4-position receptacle housing from the MCON 1.2 series. It features a 4.00mm pitch, latch lock fastening, and free hanging (in-line) mounting. The housing is made of PA66-GF30 material in black, with an MVQ seal. It accepts female socket contacts with crimp termination.
This housing is designed for sealed connector applications and includes a retainer and protective cover as part of the assembly. The operating temperature range is -40°C to 130°C, making it suitable for automotive and industrial environments.
The housing uses a latch lock mechanism for secure mating and is part of a modular system that includes CPA (Connector Position Assurance) and retainer components. The 4.00mm pitch provides reliable spacing for signal and power connections.
4 positions in a single row.
4.00mm.
Free hanging (in-line).
-40°C to 130°C.
PA66-GF30.
Female socket contacts with crimp termination.
