| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,198 pcs
|
8198 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
4,800 pcs
|
4800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

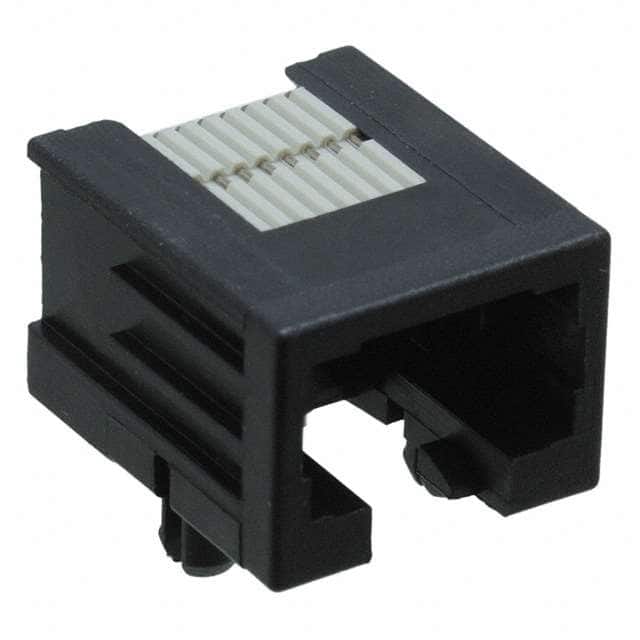

The TE Connectivity 1-1705951-1 is a modular connector jack designed for Ethernet and telecommunications applications. It features 8 positions and 8 contacts (8P8C) in a single port configuration, commonly used for RJ45 connections. The connector is mounted via through hole technology and terminated with solder, making it suitable for PCB assembly.
The jack has a right angle (90°) orientation with the tab facing down, and includes a board lock feature for secure attachment to the PCB. Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical performance and corrosion resistance. The connector is unshielded and rated for Category 3 (Cat3) applications, supporting data transmission up to 16 MHz.
This component does not contain an LED indicator. It is suitable for use in networking equipment, patch panels, and other data communication devices where a basic unshielded RJ45 interface is required.
This is a single-port modular jack with 8P8C (RJ45) contacts.
Through hole mounting with solder termination.
No, it is unshielded.
Right angle (90°) with the tab facing down.
Phosphor bronze contacts with a gold finish.
No, it does not contain an LED.
Rated for Category 3 (Cat3) applications.
