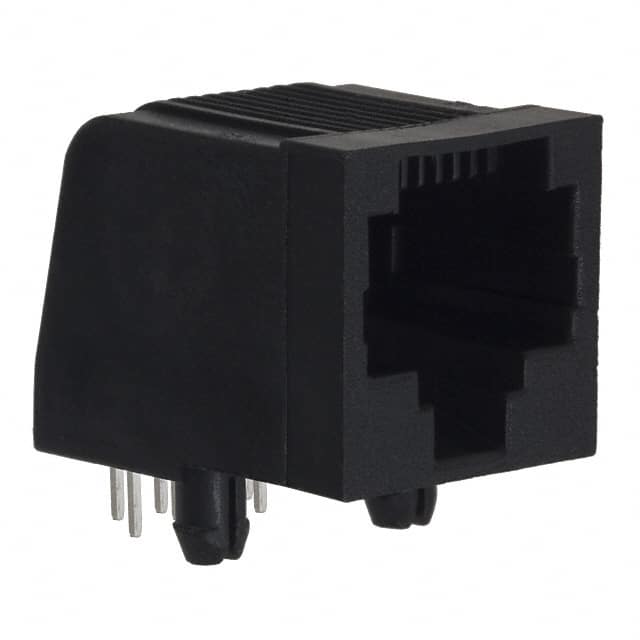

The TE Connectivity 5520426-4 is a single-port RJ45 modular jack designed for Cat3 Ethernet applications. It features an 8p8c (8 position, 8 contact) configuration with a right angle (90°) orientation and through hole mounting. The unshielded jack has a latch-down tab orientation and includes a board lock for secure mechanical attachment to the PCB.
Electrical and mechanical specifications include a maximum contact current rating of 1.5 A (typical 0.2 A), gold-plated phosphor bronze contacts with a plating thickness of 1.27 µm, and a housing made of PBT GF with UL 94V-0 flammability rating. The operating temperature range is -40 to 85 °C. The connector pitch is 1.02 mm, and the overall height is 16.2 mm.
This jack is RoHS, REACH, and ELV compliant, and meets China RoHS 2 requirements. It is supplied in a box and tray packaging with a standard quantity of 152 pieces per package. The part is suitable for use in networking equipment, telecommunications devices, and other applications requiring a reliable Cat3 modular interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.73 | $2.73 |
| 10+ | $2.31 | $2.31 |
| 25+ | $2.17 | $2.17 |
| 50+ | $2.07 | $2.07 |
| 126+ | $1.94 | $1.94 |
| 252+ | $1.84 | $1.84 |
| 504+ | $1.76 | $1.76 |
| 1,008+ | $1.67 | $1.67 |
| 2,520+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet).
1.02 mm.
1.5 A maximum, 0.2 A typical.
Through Hole.
-40 to 85 °C.
No, it is unshielded.
UL 94V-0.
