| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Cover Material | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Retainer Material | |
| Seal Material | |
| Termination Style |

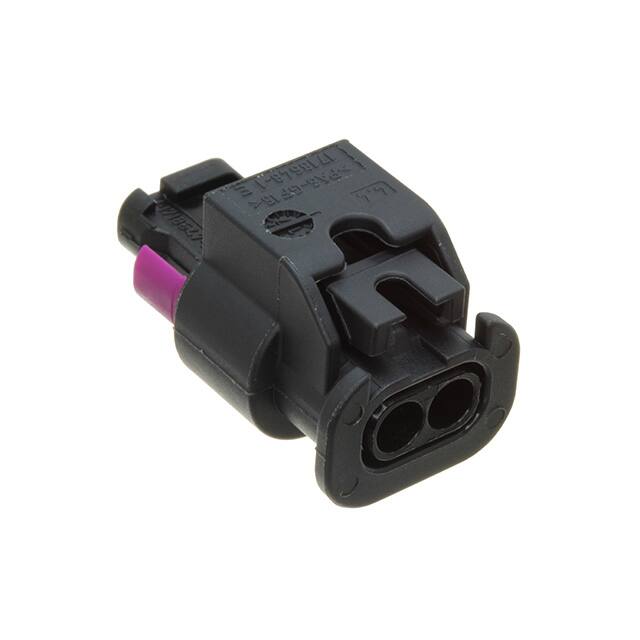

The TE Connectivity 1-1670916-1 is a sealed rectangular connector housing from the MCON 1.2 LL series. It is a 2-position, single-row receptacle designed for free hanging (in-line) mounting. The housing accepts female socket contacts with crimp termination, making it suitable for wire-to-wire connections in demanding environments.
This housing features a latch holder fastening type for secure mating and includes a protective cover. The housing is made of PA66-GF30, the retainer of PA66-GF15 (violet), and the seal of MVQ material. The protective cover is PA6-GF15 black. The operating temperature range is -40°C to 130°C.
Designed for use with MCON 1.2 LL contacts, this connector is suitable for automotive and industrial applications requiring a sealed, reliable interconnection. The crimp termination allows for field-installable wiring. The retainer is supplied in a prelocked position for ease of assembly.
2 positions in a single row.
4.00mm.
Free hanging (in-line) mounting.
-40°C to 130°C.
Crimp termination for female socket contacts.
Yes, it is a sealed housing.
Housing: PA66-GF30, retainer: PA66-GF15 violet, seal: MVQ, protective cover: PA6-GF15 black.
