| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Diameter | |
| California Proposition 65 | |
| China RoHS | |
| Color | |
| Conductor Cross Section | |
| Conductor Cross-Section (AWG) | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Degree of Protection | |
| ELV | |
| Element | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Identification | |
| Limiting Temperature | |
| Locking Type | |
| Material (Hood/Housing) | |
| Material Flammability Class | |
| Mating Cycles | |
| Mounting Type | |
| Net Weight | |
| Number of Contacts | |
| Number of Positions | |
| Number of Rows | |
| PE Contact | |
| Pack Contents | |
| Packaging Size | |
| Pollution Degree | |
| Rated Current | |
| Rated Impulse Voltage | |
| Rated Voltage | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Method | |
| UL/CSA |

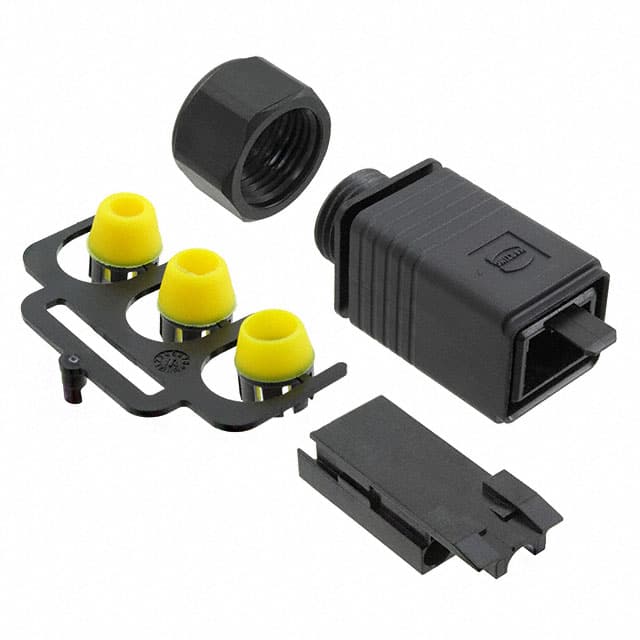

This HARTING PushPull V4 power plug housing (part number 09 46 145 3411) is a rectangular connector housing designed for power applications. It features 3 positions (2 power contacts plus a PE contact) and is rated for 250V/16A with a rated impulse voltage of 4kV. The housing uses a push-pull locking mechanism and is intended for free hanging (in-line) mounting with crimp termination.
The housing is unshielded and supplied without contacts, allowing custom contact selection. It accepts stranded conductors from 0.75 to 2.5 mm² (20 to 12 AWG). The thermoplastic housing is black with a V-0 flammability rating and provides IP65/IP67 protection against dust and water ingress. Operating temperature range is -40 to +70°C, and it is rated for at least 750 mating cycles.
Compliance includes IEC 61076-3-106 Variant 4 (V4), UL 1977, CSA C22.2 No. 182.3, and DNV GL approval. The product is RoHS, ELV, China RoHS, and REACH compliant. Note: The datasheet indicates this product is no longer orderable; please contact your distributor for alternatives.
3 positions (2 power contacts + 1 PE contact).
16 A.
250 V.
Free hanging (in-line) with crimp termination.
IP65 and IP67.
-40 to +70 °C.
≥750 cycles.
