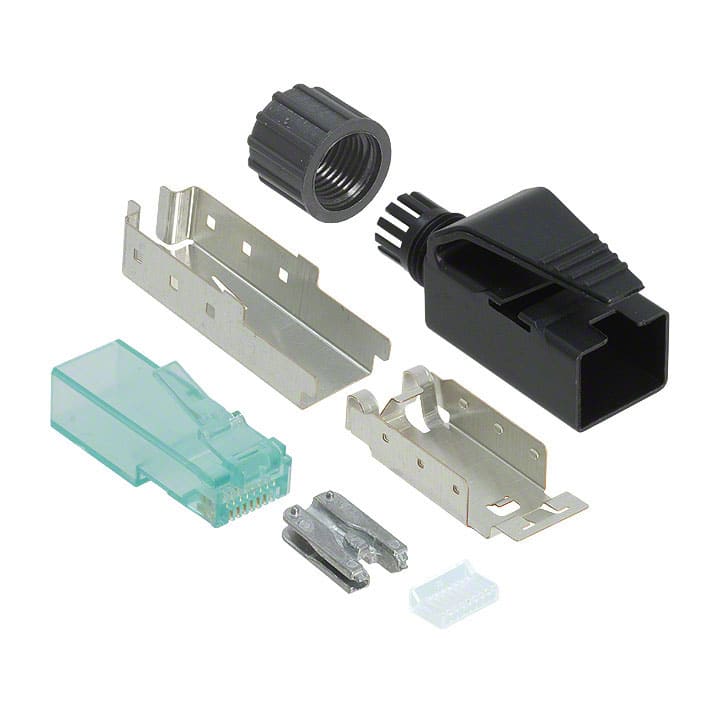

The Harting 09451511520 is a shielded RJ45 plug from the RJ Industrial series, designed for Cat6a (Class EA) performance up to 500 MHz. It supports data rates from 10 Mbit/s to 10 Gbit/s, making it suitable for high-speed Ethernet applications.
This plug uses piercing (IDC) termination for stranded wires from AWG 28/7 to AWG 24/7, with a cable diameter range of 4.5 mm to 9 mm. The housing is made of black polycarbonate (PC) with a UL 94 V-0 flammability rating. It is fully shielded with 360° shielding contact for EMI protection.
The connector is rated for IP20 ingress protection and operates from -40°C to +70°C. It has a mating cycle durability of at least 750 cycles. The package includes the hood with shielding, cable gland, and assembly instructions.
This plug is rated Cat6a (Class EA) up to 500 MHz.
It supports 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.
The termination method is IDC (piercing termination).
The limiting temperature is -40°C to +70°C.
Yes, it is fully shielded with 360° shielding contact.
The housing is made of black polycarbonate (PC).
The degree of protection is IP20 according to IEC 60529.
