| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Cable Type | |
| California Proposition 65 | |
| China RoHS | |
| Color | |
| Conductor AWG | |
| Conductor Cross Section | |
| Connector Type | |
| Country of Origin | |
| Data Rate | |
| ELV | |
| Failure Rate | |
| Flammability Class | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Quantity | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Termination |

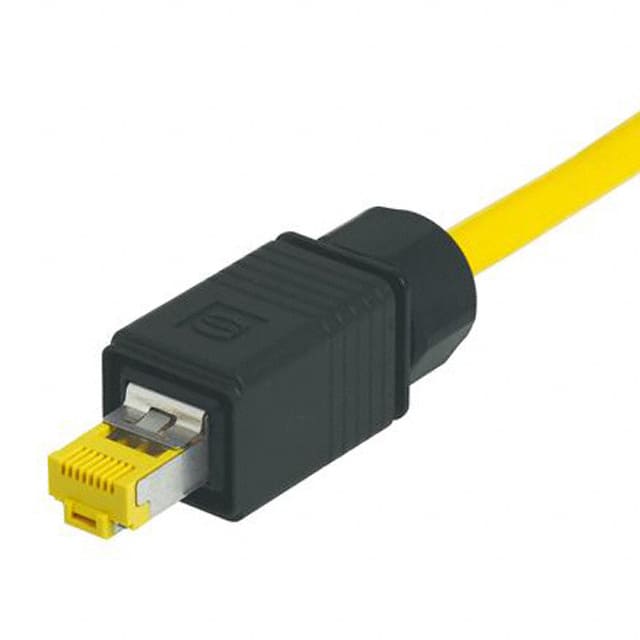

The HARTING 09451451560 is a Cat6 RJ45 modular plug from the PushPull V4 series, designed for industrial Ethernet applications requiring reliable data transmission up to 10 Gbit/s. It features 8 contacts terminated via IDC and supports round cables with solid or stranded conductors (27/7 to 22/7 AWG stranded, 24/1 to 22/1 AWG solid).
This plug is fully shielded with 360° shielding contact to minimize electromagnetic interference, and offers PushPull locking for quick, tool-free mating. The robust thermoplastic housing is rated IP65/IP67 for dust and water protection, and the connector can withstand a minimum of 750 mating cycles.
Operating temperature range is -40 to +70°C. The assembly includes the housing, RJ45 connector, shielding, and cable gland. This product has been discontinued; please contact your local HARTING distributor for alternatives.
It supports 10, 100 Mbit/s, 1, 2.5, 5, and 10 Gbit/s.
The connector is rated IP65 and IP67 (dust-tight, water-resistant, waterproof).
Cable diameter range is 4.9 mm to 8.6 mm.
PushPull locking type for quick, tool-free mating.
Yes, it is RoHS compliant verified from the datasheet.
