| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Cable Type | |
| California Proposition 65 | |
| China RoHS | |
| Color | |
| Conductor Cross Section | |
| Connector Identification | |
| Connector Type | |
| Data Rate | |
| ELV | |
| Failure Rate | |
| Flammability Class | |
| Housing Material | |
| Ingress Protection | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Pack Contents | |
| Packaging Size | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Termination |

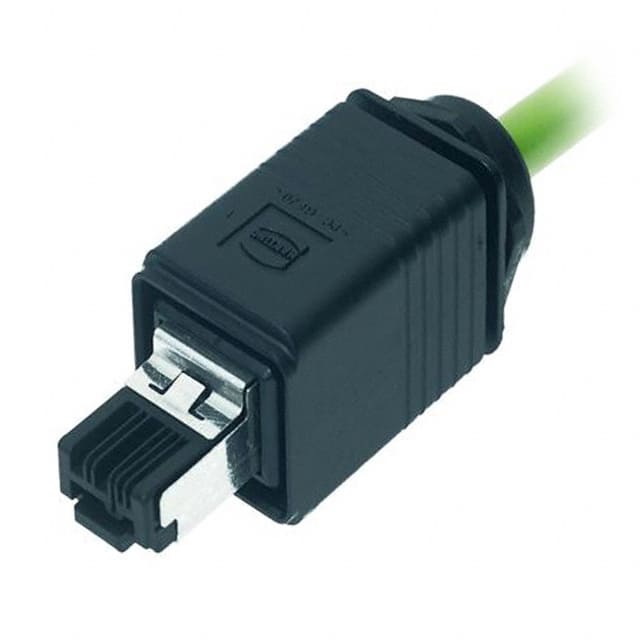

The HARTING 09 45 145 1100 is a PushPull (V4) series RJ45 plug designed for Cat. 5 Class D transmission up to 100 MHz. This connector set includes the housing, RJ45 connector, shielding, and cable gland, and uses IDC (Insulation Displacement Contact) termination for solid or stranded round cable with a diameter of 4.9 to 8.6 mm. The plug features 4 contacts and a fully shielded 360° shielding contact for reliable EMI protection.
Rated for data rates of 10 and 100 Mbit/s, the connector supports conductor cross-sections of 0.22 to 0.32 mm² (stranded) and 0.26 to 0.32 mm² (solid). The black thermoplastic housing is rated UL 94 V-0 for flammability and offers an operating temperature range of -40 to 70 °C. With an IP65 and IP67 degree of protection (per IEC 60529), the PushPull locking mechanism ensures a robust, sealed connection suitable for industrial environments.
The connector is designed for at least 750 mating cycles, making it a durable choice for applications requiring frequent connection and disconnection. Compliance includes RoHS, ELV, REACH, and California Proposition 65 (contains Nickel and Naphthalene). This product is part of the HARTING PushPull V4 family.
The plug has 4 contacts.
IP65 and IP67, dust-tight and water resistant/waterproof.
Round cable with diameter 4.9 to 8.6 mm.
-40 to +70 °C.
IDC (Insulation Displacement Connection).
10 Mbit/s and 100 Mbit/s.
Yes, fully shielded with 360° shielding contact.
