| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contacts | |
| Current Rating (Amps) | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

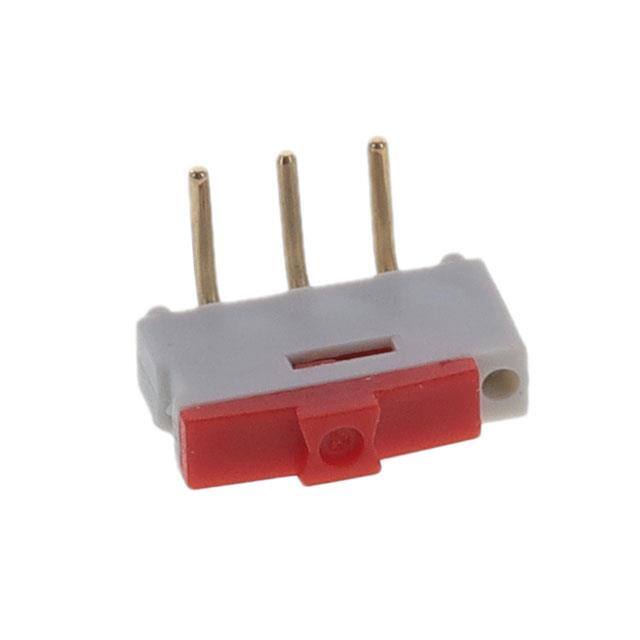

The EAO 09.10201.02 is a compact slide switch recommended for PCB applications, serving as an ideal jumper replacement. This maintained action switch features an SPDT circuit and is rated for 500mA at 24V.
It is designed for through-hole mounting with right-angle PCB pins. The contact material is gold-plated for dependable operation, particularly in demanding environmental conditions. The actuator is flush, providing a clean profile.
Manual soldering is required for this model. The switch operates within a temperature range of -40°C to 85°C. Its compact design makes it suitable for space-constrained applications where reliable switching is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 24V.
It has an SPDT (Single Pole Double Throw) circuit.
The current rating is 500mA (DC).
It is mounted through hole at a right angle to the PCB.
The operating temperature range is -40°C to 85°C.
