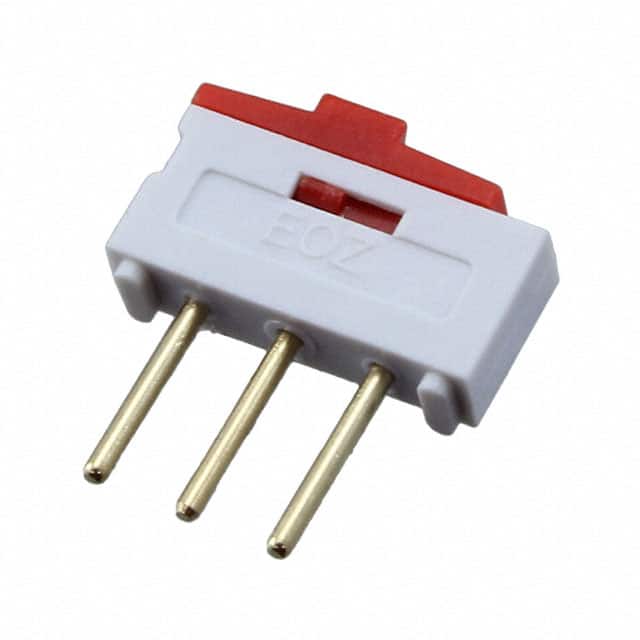

09.03201.02 The EAO 09.03201.02 is a maintained action slide switch with a 24V voltage rating and 500mA current capacity. It features a flush actuator and gold contact finish.
Mfr Part #:

09.03201.02

Available from 3 distributors
Mfr Name: EAO
EAO
The EAO 09.03201.02 is a maintained action slide switch with a 24V voltage rating and 500mA current capacity. It features a flush actuator and gold contact finish.
✓ Total Stock: 410 pcs
$ Price Range: $0.75

09.03201.02 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
276 pcs
On Request
276 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
123 pcs
On Request
123 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09.03201.02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Mounting Type
Operating Temperature
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09.03201.02 Description

Short technical summary and product information.

The EAO 09.03201.02 is a compact slide switch designed for PCB applications, serving as an ideal jumper replacement. This maintained action switch offers a 1-pole changeover (SPDT) configuration with a current rating of 500mA at 24V.



It features a flush actuator for easy operation and a gold contact finish for dependable performance. The switch is designed for through-hole mounting with PC pin termination style.



With an operating temperature range of -40°C to 85°C and a mechanical lifetime of 10,000 operations, the 09.03201.02 is suitable for various applications. The datasheet specifies a nominal actuator travel of 1.6mm.

09.03201.02 Quick Information

Product Type: Slide Switch
Series: 1K2
Canonical Name: EAO 09.03201.02 Slide Switch
Subcategory: Slide Switch

09.03201.02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09.03201.02 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

09.03201.02 Features

  • Maintained action slide switch
  • 500mA current rating at 24V
  • Gold contact finish
  • Through-hole mounting
  • Flush actuator type

09.03201.02 Applications

  • Used in low-power control circuits
  • Suitable for industrial and medical devices
  • Panel-mounted in electronic equipment
  • Applications requiring environmental durability

09.03201.02 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the switch?

The operating voltage is 24V.

What is the contact material of the switch?

The contact material is gold with a gold finish.

What is the current rating of the switch?

The current rating is 0.5A (DC).

What is the mechanical lifetime of the switch?

The mechanical lifetime is 10,000 operations.

What mounting style does the switch use?

It uses through-hole mounting with PC pins.

What is the operating temperature range?

-40°C to 85°C.
