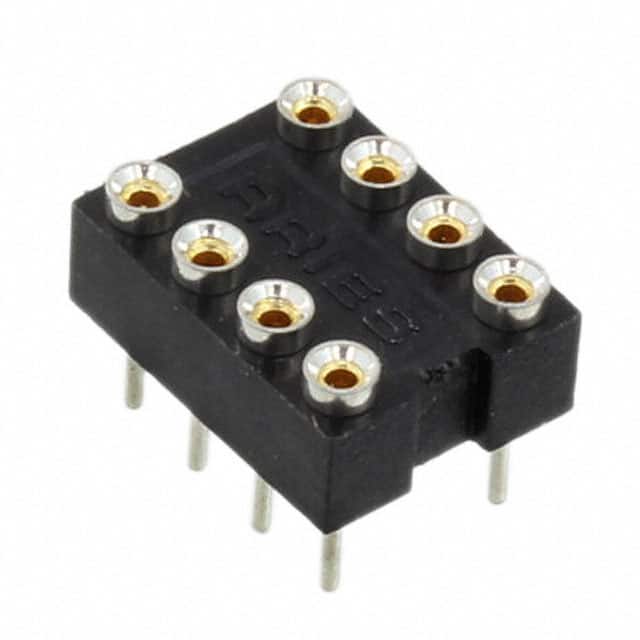

The 08-2513-10 is an 8-position DIP socket manufactured by Aries Electronics. It features a 2.54mm pitch and 5.08mm row spacing, designed for through hole mounting with solder termination. The socket uses a closed frame housing made of black UL 94V-0 glass-filled 4/6 Nylon, providing robust mechanical support and flame retardancy.
The contacts are beryllium copper collet type with a tin finish (0.25µm thickness), rated for 3 amps continuous current. The socket accepts leads with diameters from 0.38mm to 0.64mm and lengths from 2.54mm to 3.71mm. The suggested PCB hole diameter is 0.76mm. Insertion force is 180g per pin, withdrawal force is 90g per pin, and normal force is 140g per pin, based on a 0.46mm test lead.
Operating temperature range is -55°C to 105°C. The socket is suitable for DIP package integrated circuits in prototyping, production, and industrial applications. The closed frame design provides protection and stability during handling and soldering.
The socket has 8 positions arranged in a 2x4 grid.
The pitch is 2.54 mm (0.100 inches).
The current rating is 3 amps per contact.
The socket is through hole mount with solder termination.
The operating temperature range is -55°C to 105°C.
The contacts are beryllium copper with a tin finish.
The insertion force is 180 grams per pin based on a 0.018 inch diameter test lead.
