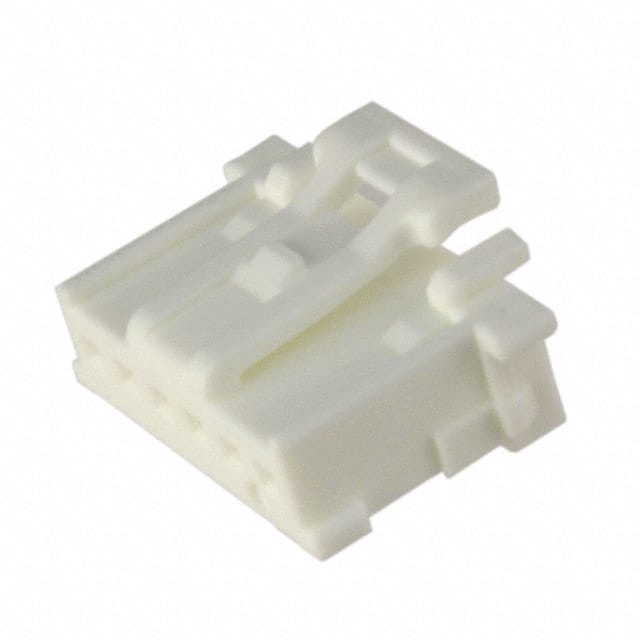

0513820600 Molex 0513820600 is a 6 position, single row, 2.00mm pitch rectangular connector housing. It features female socket contacts with crimp termination and a latch lock fastening type.
Mfr Part #:

0513820600

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0513820600 is a 6 position, single row, 2.00mm pitch rectangular connector housing. It features female socket contacts with crimp termination and a latch lock fastening type.
✓ Total Stock: 1 pcs

0513820600 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0513820600 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Termination Style
View Similar Products (0)

0513820600 Description

Short technical summary and product information.

The Molex 0513820600 is a connector housing designed for wire-to-wire or wire-to-board applications. It is a receptacle type housing that accepts female socket crimp terminals. The housing features 6 positions arranged in a single row with a 2.00mm pitch.



This housing is free hanging (in-line) mounted and utilizes a latch lock mechanism for secure mating. It is molded in white material and is rated for an operating temperature range of -40°C to 105°C.



The crimp termination style allows for reliable wire attachment. This connector housing is commonly used in a variety of electronic interconnect applications where a compact and secure connection is needed.

0513820600 Quick Information

Product Type: Rectangular Connector Housing
Canonical Name: Molex 6 Position Single Row 2.00mm Pitch Receptacle Housing
Subcategory: Wire-to-Board / Wire-to-Wire Housing

0513820600 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0513820600 Features

  • 6 position single row receptacle housing.
  • 2.00mm pitch for compact wiring.
  • Latch lock fastening for secure connection.
  • Free hanging in-line mounting style.
  • Crimp termination for reliable wire attachment.

0513820600 Applications

  • Wire-to-wire interconnect cable assemblies.
  • Wire-to-board connections in electronic devices.
  • Applications requiring a secure latch lock.

0513820600 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 0513820600 housing have?

This housing has 6 positions.

What is the pitch of this Molex connector housing?

The pitch is 2.00mm (0.079 inches).

What type of mounting does the 0513820600 use?

It uses free hanging (in-line) mounting.

What is the operating temperature range for this part?

The operating temperature range is -40°C to 105°C.

What type of contacts does this housing accept?

It accepts female socket contacts terminated by crimp.

What is the color of the Molex 0513820600 housing?

The housing is white.
