| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Industrial Grade | |
| Mounting Torque | |
| Mounting Type | |
| Number of Circuits | |
| Panel Thickness (max) | |
| Protection Rating | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

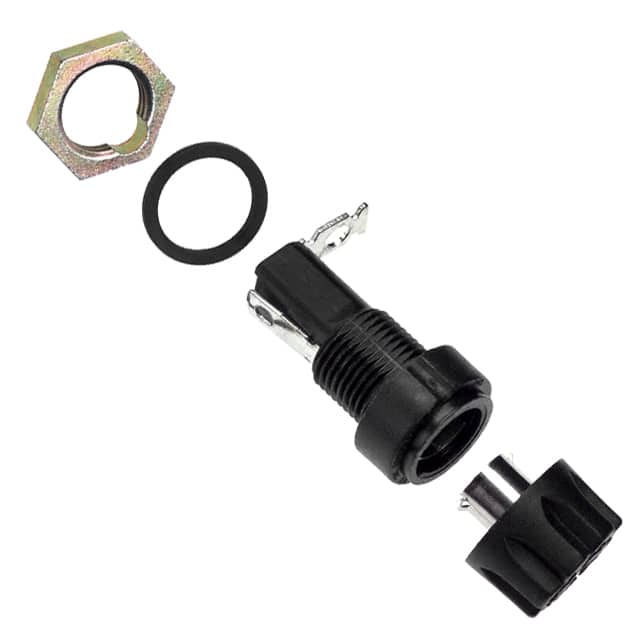

The Littelfuse 03420004H is a panel mount enclosed fuseholder from the 342 Series, designed for 3AG/AB (1/4" x 1-1/4") cartridge fuses. It is rated for 20 amperes at voltages up to 250V, with a minimum dielectric strength of 2400V.
The housing is made of black thermoplastic rated UL94 V-0, and the terminals are copper & copper alloy with tin plating. The fuseholder withstands up to 15 lb-in of mounting torque and accepts panel thicknesses up to 0.187". It has an IP40 ingress protection rating for general application use.
Termination is via solder lug, and the unit is RoHS3 compliant. The 03420004H is suitable for a wide range of circuit protection applications requiring a reliable, panel-mount fuseholder.
The fuseholder is rated for 20 amperes at voltages up to 250V.
It accepts 3AG/AB cartridge fuses, also known as 1/4" x 1-1/4" (SFE-20).
The operating ambient temperature range is -40°C to +85°C.
The fuseholder has an IP40 rating for general application use.
The housing is made of black thermoplastic rated UL94 V-0.
