| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
155 pcs
|
155 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX | |
| AWG Range | |
| Clamping Range | |
| Clamping Screw | |
| Color | |
| Conductor Cross-Section (Rated) | |
| Connection Direction | |
| Current | |
| Current (ATEX) | |
| Current (CSA) | |
| Current (Rated) | |
| End Plate Required | |
| Explosion Tested Version Ex e | |
| Flammability Rating (UL 94) | |
| Flexible Conductor Cross-Section | |
| Gauge to IEC 60947-1 | |
| IECEx | |
| Industrial Grade | |
| Insulating Material | |
| Levels Cross-Connected Internally | |
| Mounting Type | |
| No. of Identical Terminals | |
| No. of Terminal Strips per Level | |
| Number of Levels | |
| Number of Positions | |
| Open Sides | |
| Operating Temperature Range | |
| Rail Type | |
| Solid Conductor Cross-Section | |
| Standard Package Quantity | |
| Stripping Length | |
| Terminal | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Voltage (ATEX) | |
| Voltage (CSA) | |
| Voltage - Rated | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

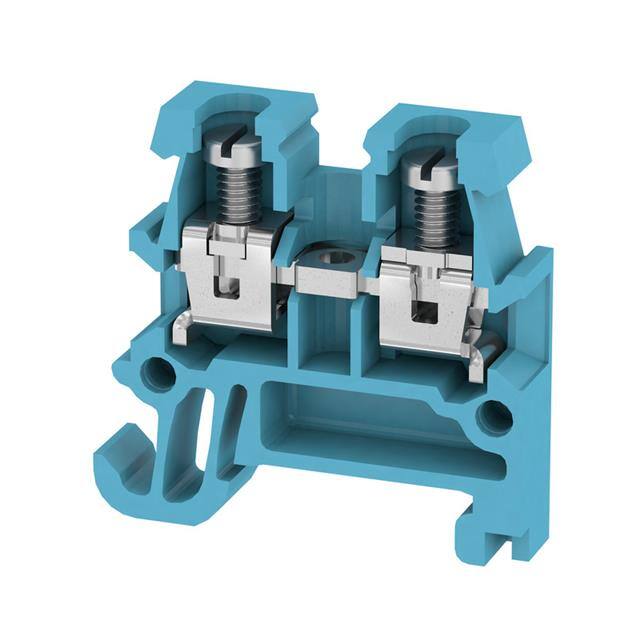

The Weidmüller 0340480000 (AKZ 1.5 BL) is a feed-through terminal block from the SAK series, designed for DIN rail mounting on TS 15 rails. It features a screw connection and accepts solid conductors from 0.5 to 2.5 mm² and flexible conductors from 0.5 to 1.5 mm², with an AWG range of 24-14. The terminal block is rated for 150V and 15A, with additional ATEX ratings of 176V/15A and CSA ratings of 300V/10A.
Constructed from blue polyamide with a V2 flammability rating per UL 94, this terminal block is suitable for industrial control panels and junction boxes. It has a width of 5.1 mm, a stripping length of 7 mm, and requires a tightening torque of 0.4-0.6 Nm on the M2.5 clamping screw. The operating temperature range is -50 to +100 °C.
The terminal block is explosion-tested (Ex e) and carries ATEX and IECEx certifications. It is supplied in standard packaging of 100 pieces and requires an end plate for installation.
2 positions.
24-14 AWG (0.5-2.5 mm² solid, 0.5-1.5 mm² flexible).
Rated 150V and 15A. ATEX rating is 176V/15A, CSA rating is 300V/10A.
Clamped mounting on DIN rail TS 15.
-50 to +100 °C.
Yes, it is an explosion-tested version (Ex e) with ATEX and IECEx certifications.
