| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
127 pcs
|
127 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX | |
| ATEX Conductor Cross Section | |
| ATEX Current | |
| ATEX Voltage | |
| AWG Max | |
| AWG Min | |
| CSA | |
| CSA Current | |
| CSA Max Wire Size | |
| CSA Min Wire Size | |
| CSA Voltage | |
| Clamping Screw | |
| Color | |
| Connection Direction | |
| Current | |
| Current Rating | |
| End Plate Required | |
| Explosion Tested Version Ex e | |
| Flammability Rating | |
| Flexible Conductor Max | |
| Flexible Conductor Min | |
| IECEx | |
| IECEx Conductor Cross Section | |
| IECEx Current | |
| IECEx Voltage | |
| Insulating Material | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature Range | |
| Solid Conductor Max | |
| Solid Conductor Min | |
| Standard Package Quantity | |
| Stranded Conductor Max | |
| Stranded Conductor Min | |
| Stripping Length | |
| Terminal | |
| Terminal Width | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge Range | |
| Wire Gauge or Range |

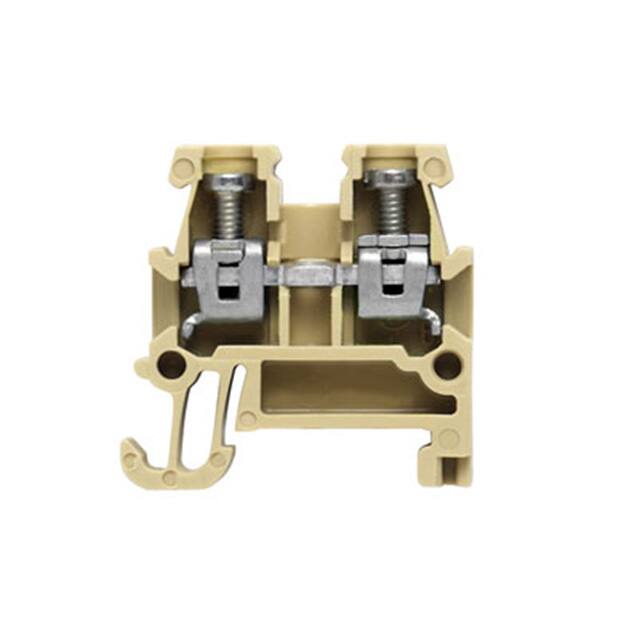

The Weidmüller 0340460000 (AKZ 1.5) is a feed through terminal block from the SAK Series, designed for DIN rail mounting on TS 15 profile. It features a screw termination style with a clamping screw M 2.5 and a tightening torque of 0.4-0.6 Nm. The terminal block accepts solid conductors from 0.5 to 2.5 mm² and flexible conductors from 0.5 to 1.5 mm², with a stripping length of 7 mm. It is rated for 15 A continuous current and 150 V AC/DC, with a wire range of 24 AWG to 14 AWG. The insulating material is beige polyamide with a V2 flammability rating per UL 94. The operating temperature range is -50 °C to +100 °C. This component is ATEX and IECEx certified for explosive environments (Ex e II), with ATEX ratings of 176 V and 15 A at 1.5 mm² conductor cross-section. It also carries CSA certification with ratings of 300 V and 10 A. The terminal block requires an end plate and has side connection direction.
15 A
150 V
24 AWG to 14 AWG
Clamped mounting on TS 15 DIN rail
Yes, ATEX certified Ex II 2 G D with ratings 176 V, 15 A, 1.5 mm²
-50 °C to +100 °C
V2 per UL 94
