| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

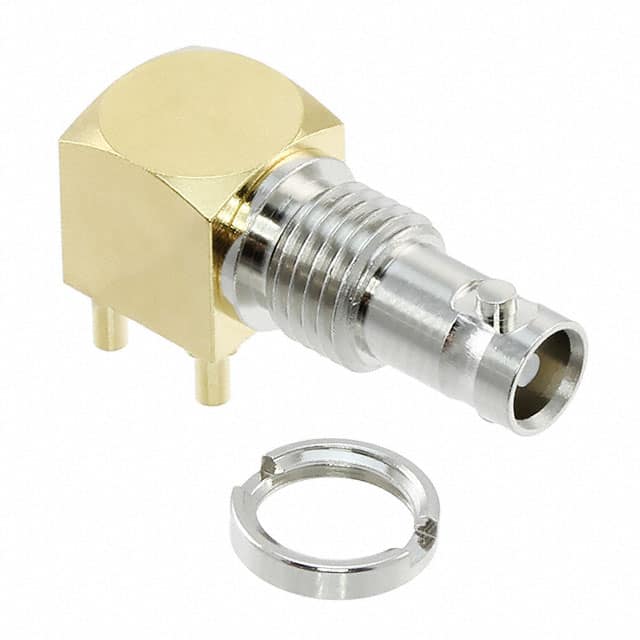

The 034-1030-12G is an HD-BNC jack connector from Amphenol RF designed for 75 Ohm coaxial systems. It features a female socket contact with beryllium copper center contact material and bayonet lock fastening for secure connections.
This connector supports frequencies up to 18 GHz and offers a right angle orientation for space-constrained PCB layouts. Termination is via solder for both the contact and shield, ensuring reliable electrical and mechanical bonds.
Mounting is panel mount with a bulkhead front side nut feature, and the housing is available in gold and silver finishes. The single-port design is suitable for high-frequency signal routing in broadcast, telecommunications, and test equipment applications.
75 Ohm.
18 GHz.
HD-BNC jack, female socket.
Solder termination for both contact and shield.
Panel mount, through hole, right angle with bulkhead front side nut.
Bayonet lock.
Beryllium copper.
