| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

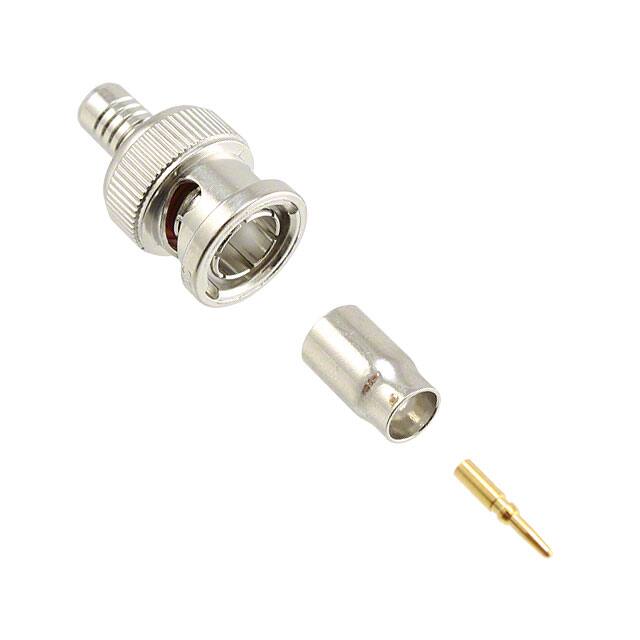

The Amphenol RF 031-71008-2000 is a BNC plug connector designed for 75 Ohm coaxial cable systems. It features a male pin center contact made of brass and a silver-plated housing. The connector supports frequencies up to 2 GHz and uses a bayonet lock fastening mechanism for secure connections.
Termination is accomplished via crimp for both the center contact and shield, ensuring reliable electrical and mechanical connections. The connector is intended for free hanging (in-line) mounting and is compatible with RG-59 plenum cable as well as Belden 82108, 82259, 89108, and 89259 cable types.
This single-port connector is suitable for RF applications requiring 75 Ohm impedance matching. The RoHS3 compliance status is reported but unverified.
75 Ohm.
2 GHz.
Crimp termination for both center contact and shield.
RG-59 Plenum, Belden 82108, 82259, 89108, 89259.
Free hanging (in-line).
