| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Body Material | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Frequency | |
| Grounding Terminal Material | |
| Housing Color | |
| Impedance | |
| Industrial Grade | |
| Insulator Material | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Packaging Type | |
| Shield Termination | |
| Standard Package Quantity | |
| Tape & Reel |

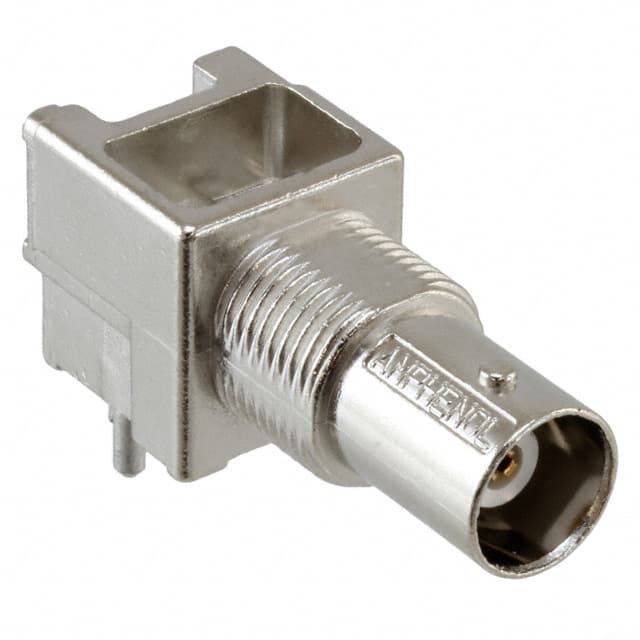

The Amphenol RF 031-5640 is a 50 Ohm BNC jack connector with a female socket contact. It features a right angle orientation for through hole PCB mounting and includes a bulkhead front side nut for panel mounting. The connector uses a bayonet lock fastening type and solder terminations for both the contact and shield.
Electrical specifications include a characteristic impedance of 50 Ohms, a frequency range from DC to 1 GHz, and a dielectric withstanding voltage of 1500 Vrms. The body is zinc die cast with nickel plating, the center contact is phosphor bronze with gold plating at the contact area, and the insulator is polypropylene.
Mechanical durability is rated for 500 mating cycles, and the operating temperature range is -55°C to 85°C. The connector is packaged in a tray with a standard quantity of 40 pieces.
The impedance is 50 Ohms.
The frequency range is DC to 1 GHz.
It uses panel mount with a bulkhead front side nut and through hole, right angle PCB mounting.
The operating temperature range is -55°C to 85°C.
It is rated for 500 mating cycles.
