| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| Voltage Rating | |
| Width |

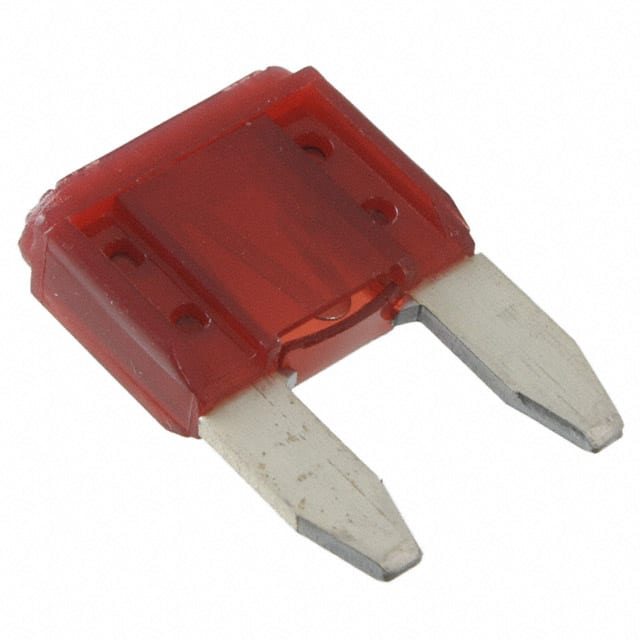

The Littelfuse 029707.5WXNV is a MINI blade fuse rated for 7.5A at 32V DC. It features a fast blow response time and an interrupting rating of 1kA at rated voltage. The fuse is designed for automotive applications and operates reliably over a temperature range of -40°C to 125°C.
The housing is made of PA66 with a UL 94 V-2 flammability rating, and the terminals are silver or tin plated zinc alloy. The fuse is color-coded brown for 7.5A identification and has a compact miniature blade package measuring 10.90mm x 3.80mm x 8.80mm. It requires a separate holder for mounting.
Electrical characteristics include a typical voltage drop of 135 mV at rated current, cold resistance of 10.85 mΩ, and melting I²t of 68 A²s. The fuse is suitable for protecting wiring and components in cars, trucks, SUVs, offroad vehicles, and buses.
7.5 A.
32 V DC.
1 kA at 32 V DC.
Fast blow.
Blade, Miniature (MINI blade fuse).
-40°C to 125°C.
Brown.
