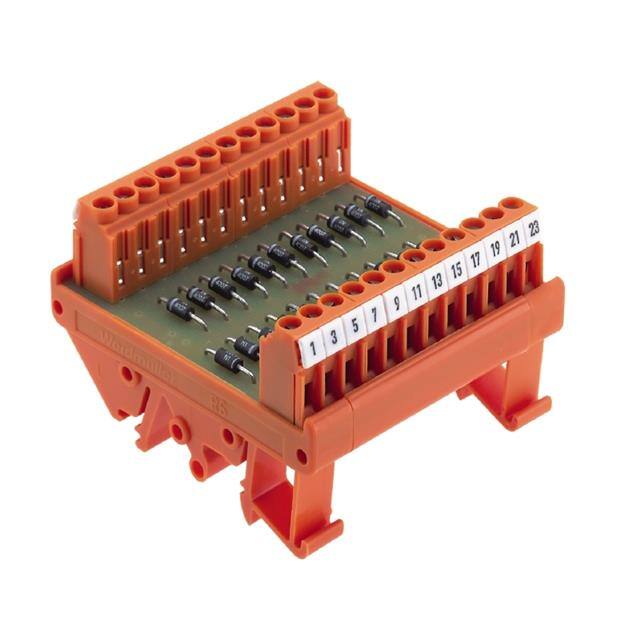

The Weidmüller 0180961001 is an interface module from the RSD A22 LP/LP series, designed to provide surge voltage protection, facilitate lamp testing, or protect against reversed polarity. This module utilizes a 1N4007 diode with a shared anode configuration.
It is rated for a voltage of 230V and a current of 1A per connection. The interface module supports a wide range of wire gauges, from 0.13 mm² to 6 mm² for clamping, with specific ranges for solid and flexible wires. Screw connections are utilized for secure termination, with a recommended tightening torque between 0.5 Nm and 0.6 Nm.
With dimensions of 65 mm in length, 70 mm in width, and 42 mm in height, the module has a net weight of 73.48 g. It operates within a temperature range of 0°C to 55°C and can be stored between -40°C and 60°C. The insulation coordination meets DIN EN 50178 standards, with a rated insulation voltage of 230V, a surge voltage category of II, and a pollution severity level of 2.
230 V
Interface
0 to +55 °C
1 A
Screw connection
65 mm length, 70 mm width, 42 mm height
0.5 to 0.6 Nm
