| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
551 pcs
|
551 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Features | |
| Flammability Rating | |
| Housing Color | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| PCB Thickness | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Ul File Number | |
| Voltage Rating |

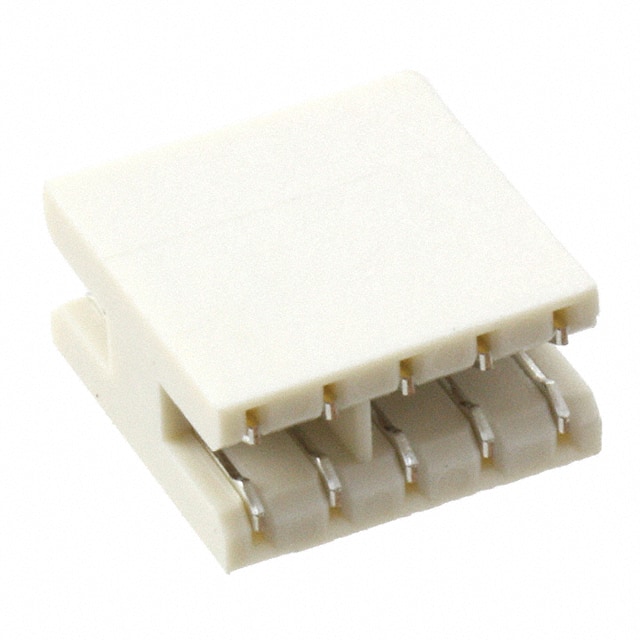

The Kyocera AVX 009159010061916 is a solid state lighting (SSL) bridge connector designed for board-to-board applications. It offers 10 positions with a 2.00mm pitch, providing a compact interconnect solution for linear LED strip lighting and commercial/industrial coplanar board connections. The connector is rated for 2.5A per contact (for 10 positions) and 300VAC, with an operating temperature range of -40°C to 125°C. The housing is made of Polyamide (PA46) with a UL94 V-0 flammability rating, ensuring reliability in demanding environments. Contacts are phosphor bronze with a tin finish, rated for 5 mating cycles. The free hanging (in-line) mounting style and open-ended design support 1.6mm PCB thickness. Packaging is in a bag. Compliance includes RoHS3 (unverified), REACH unaffected, and MSL 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
| 10+ | $1.12 | $1.12 |
| 100+ | $0.95 | $0.95 |
| 500+ | $0.85 | $0.85 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.78 | $0.78 |
| 5,000+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.00mm (0.079").
2.5A for 10 positions.
300 VAC.
Free Hanging (In-Line).
-40°C to 125°C.
Polyamide (PA46), Nylon 4/6 with UL94 V-0 flammability rating.
