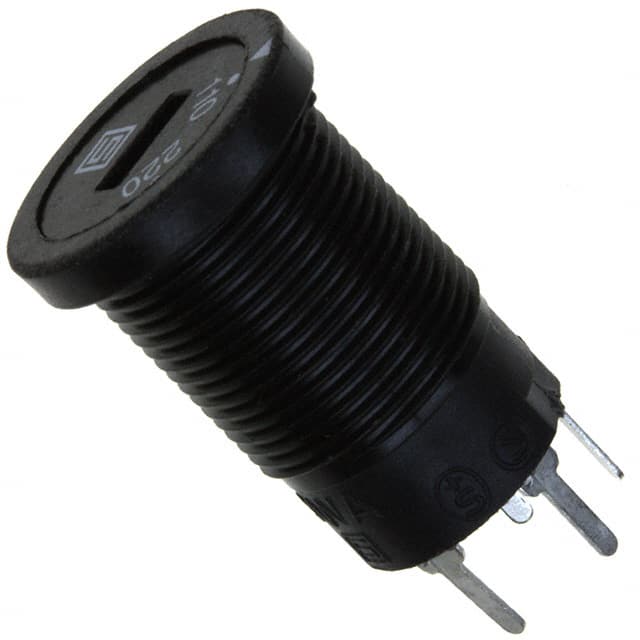

0033.4601 The Schurter Inc. 0033.4601 is a 2-stage voltage selector switch designed for PCB mounting. It offers a 250V voltage rating and 6.3A current capacity.
Mfr Part #:

0033.4601

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 0033.4601 is a 2-stage voltage selector switch designed for PCB mounting. It offers a 250V voltage rating and 6.3A current capacity.
✓ Total Stock: 77 pcs
$ Price Range: $0.75

0033.4601 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0033.4601 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Contact Resistance
Current Rating (Amps)
Features
Illumination
Ingress Protection
Insulation Resistance
Mounting Type
Number of Positions
Number of Stages
Operating Temperature
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
Weight
View Similar Products (0)

0033.4601 Description

Short technical summary and product information.

This Schurter Inc. 0033.4601 is a 2-stage voltage selector switch with series-parallel connection capabilities. It is designed for PCB mounting and features solder/THT terminals. The switch operates within a temperature range of -40°C to 85°C and has an ingress protection rating of IP40 on the front side.



With a voltage rating of 250V and a current rating of 6.3A (IEC, UL, CSA), this component is suitable for various applications. It is designed for appliances with protection class II according to IEC 61140. The switch has 2 positions and a lifetime of 300 operating cycles without load.



Key technical specifications include a dielectric strength of >2kVAC between L-N and >4kVAC between L/N-PE, and an insulation resistance of >10 GΩ. The material of the socket is thermoplastic, black, UL 94V-0. The switch is also designed according to product standards UL 508 and CSA C22.2 no. 14, and suitable for applications acc. IEC/UL 62368-1 and IEC 60335-1.



An alternative version for panel mounting, SWA1, is also available. This model is suitable for industrial environments and has approvals from independent testing bodies.

0033.4601 Quick Information

Product Type: Voltage Selector Switch
Canonical Name: Schurter Inc. 0033.4601 Voltage Selector Switch
Subcategory: Selector Switches

0033.4601 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0033.4601 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

0033.4601 Features

  • Two-stage series-parallel voltage selector.
  • Designed for PCB mounting applications.
  • Rated for 250 VAC at 6.3 Amps.
  • IP40 ingress protection on front side.
  • Operates from -40°C to 85°C.

0033.4601 Applications

  • Suitable for protection class II appliances.
  • Used in audio/video equipment.
  • Applicable in information and communication technology.
  • Designed for household appliance safety.

0033.4601 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0033.4601 switch?

The switch has a current rating of 6.3A.

What is the voltage rating of the 0033.4601 switch?

The switch is rated for 250VAC.

What is the ingress protection rating of the switch?

The ingress protection rating is IP40.

What is the operating temperature range for this switch?

The operating temperature range is from -40°C to 85°C.

What is the lifetime of the switch?

The switch has a lifetime of 300 operating cycles.
