| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Supplier Device Package | |
| Voltage |
The ZXTR1005K4-13 from Diodes Incorporated is a linear voltage regulator designed to deliver a stable 5V output from a 100V input. It provides up to 50mA of output current with ±4% output voltage tolerance over the full operating temperature range. The device also supports 100mA continuous and peak pulsed input/output current, making it suitable for low-power auxiliary supplies and bias circuits.
This regulator offers a PSRR of 57dB at 100Hz, helping to reject input ripple in high-voltage applications. The enable current is specified at ±1mA, allowing precise control of the enable interface. With an operating temperature range of -55°C to 125°C, the ZXTR1005K4-13 is well suited for harsh environments encountered in automotive, industrial, and telecom equipment.

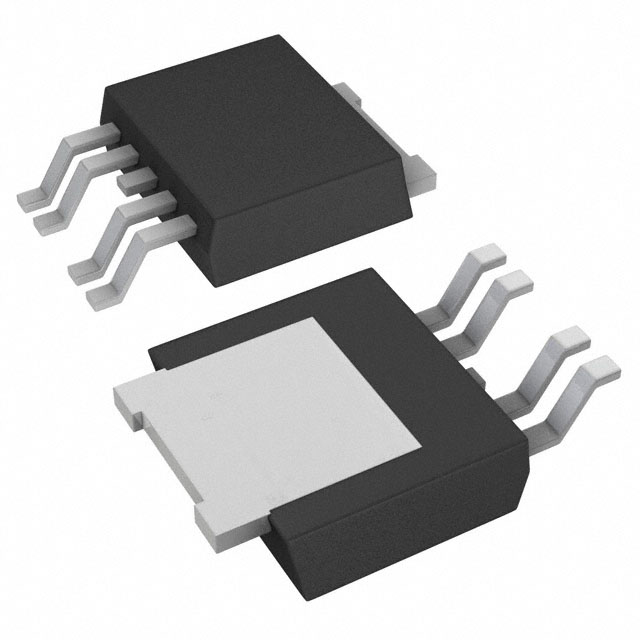

The device is available in a TO-252-4L (DPAK-4) surface-mount package, which provides efficient heat dissipation for linear regulation from high input voltages. This package is widely used in automated assembly processes and supports compact PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V nominal with ±4% tolerance.
The maximum output current is 50mA.
The input voltage is 100V.
-55°C to 125°C.
The PSRR is 57dB at 100Hz.
TO-252-4L (DPAK-4).
The enable current is ±1mA maximum.
