The ZXGD3111N7TC is a 200V Active OR’ing MOSFET Controller from Diodes Incorporated, housed in a 7-SO package. This device is engineered to drive a low R DS(ON) Power MOSFET, effectively acting as an ideal diode. This configuration significantly reduces forward voltage drop and enhances power transfer efficiency compared to standard rectifiers.
The controller is suitable for both high-side and low-side power supply units (PSUs) with voltage rails up to ±200V. It features a very low turn-off threshold of -3mV typical with a ±2mV tolerance, enabling low RDS(ON) MOSFETs to operate efficiently. In a typical 48V setup, the standby power consumption is less than 50mW, with a low quiescent supply current under 1mA.
During fault conditions, the ZXGD3111N7TC detects power reduction and rapidly turns off the MOSFET in under 600ns, blocking reverse current flow and preventing common bus voltage drops. Applications include (N+1) Redundant Power Supplies, Telecom and Networking equipment, and Data Centers and Servers.
Key features include a 200V drain voltage rating and a 25V VCC rating. The device is surface mountable and comes in a 7-lead SOIC package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain voltage rating is 200V.
The VCC rating is 25V.
The typical turn-off threshold is -3mV with a ±2mV tolerance.
The quiescent supply current is less than 1mA.
The standby power consumption is less than 50mW in a typical 48V configuration.
The MOSFET is turned off in less than 600ns during a fault condition.

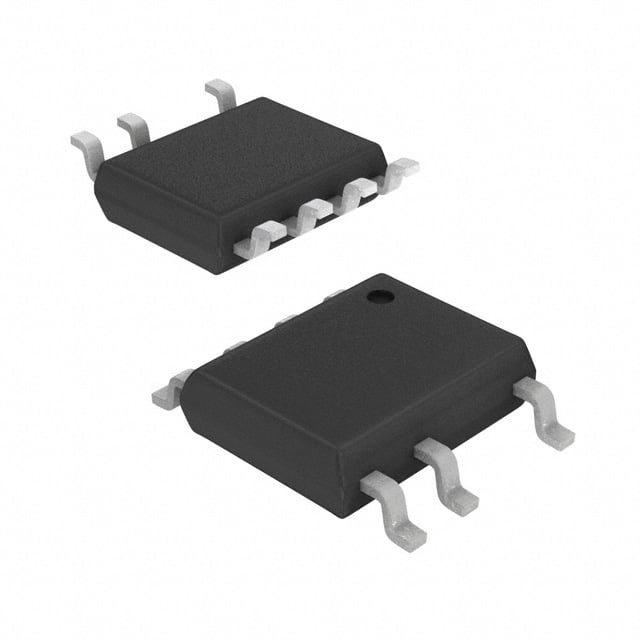

The ZXGD3111N7TC is in a 7-SO package.
