Mfr Part #:

ZXBM2004JA16TC

Name: ZXBM2004JA16TC
Brand: Diodes Incorporated
SKU: ZXBM2004JA16TC

Mfr Name: Diodes Incorporated

Description:

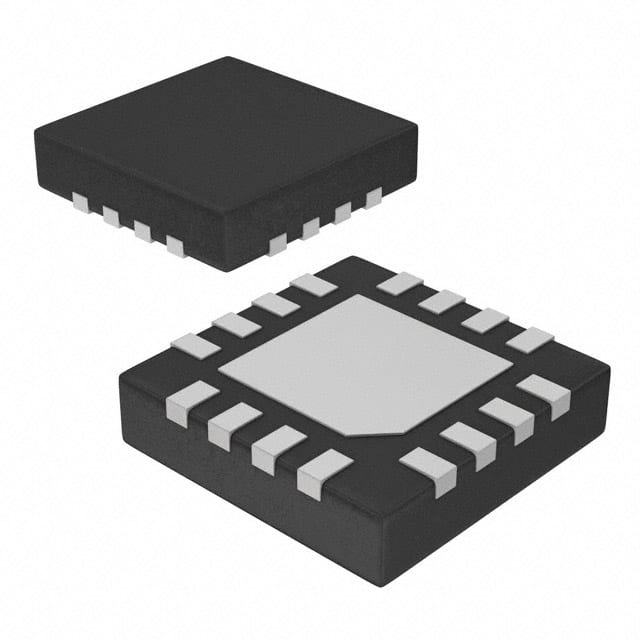

IC MOTOR DRIVER 4.7V-18V 16QFN

Stock on Request

ZXBM2004JA16TC Description

Short technical summary and product information.

IC MOTOR DRIVER 4.7V-18V 16QFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Diodes Incorporated
Applications	Fan Controller
Function	Controller - Commutation, Direction Management
Interface	PWM
Motor Type	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 110°C (TA)
Output Configuration	Pre-Driver - Half Bridge (2)
Supplier Device Package	U-QFN3030-16 (Type B)
Voltage	4.7V ~ 18V
