| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Ingress Protection | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature - Maximum | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

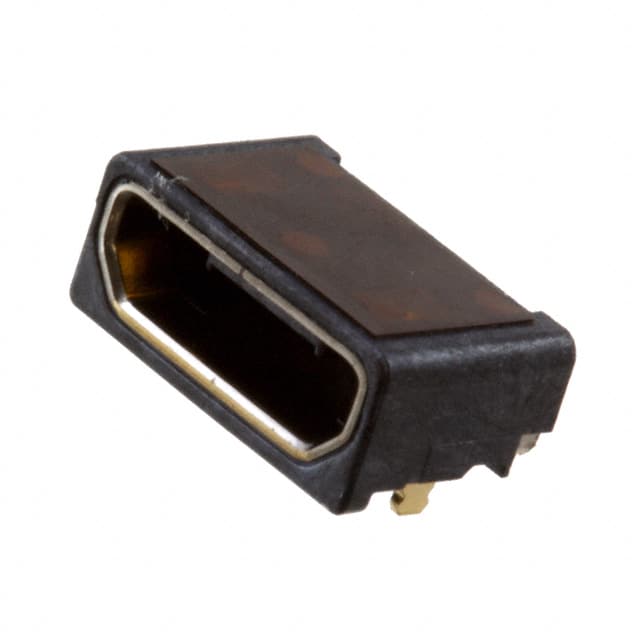

The Hirose ZX62WD1-B-5PC is a USB 2.0 Micro B receptacle connector designed for space-constrained applications. It features 5 contacts with a current rating of 1.8A and a voltage rating of 30VAC. The connector is surface mountable with a right-angle orientation, making it suitable for low-profile designs. It includes a board lock feature for secure attachment to the PCB and is shielded to reduce electromagnetic interference. The ingress protection rating of splash proof allows use in environments where moisture exposure may occur. The operating temperature range is -30°C to 85°C, and it is rated for 10,000 mating cycles, ensuring durability in repeated use applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.71 | $1.71 |
| 25+ | $1.53 | $1.53 |
| 100+ | $1.45 | $1.45 |
| 250+ | $1.34 | $1.34 |
| 500+ | $1.27 | $1.27 |
| 1,000+ | $1.25 | $1.25 |
| 3,000+ | $1.20 | $1.20 |
| 6,000+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is USB 2.0.
The current rating is 1.8A.
The voltage rating is 30VAC.
It uses surface mount, right angle mounting.
Yes, it is shielded.
The ingress protection rating is splash proof.
It is rated for 10,000 mating cycles.
