| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Connector Type | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Insertion Force | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Removal Force | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Withstanding Voltage |

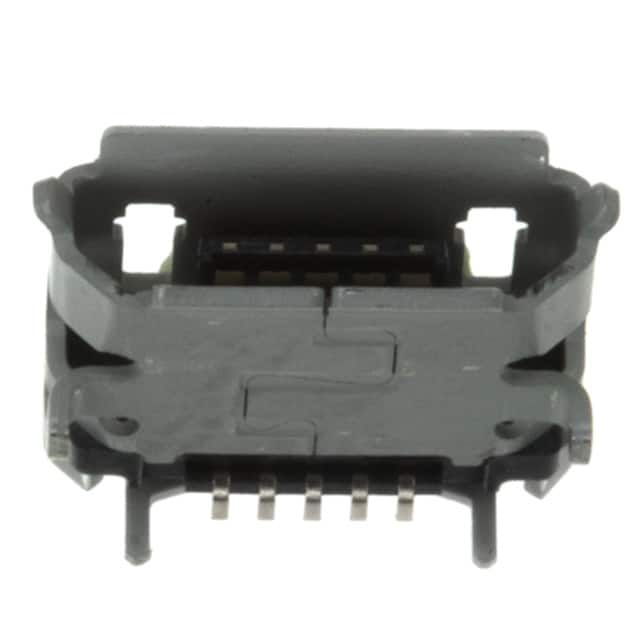

The ZX62D-B-5P8(30) is a USB 2.0 Micro-B receptacle from Hirose Electric's ZX series. It features a right-angle mounting configuration with both surface mount and through-hole shell terminations, making it suitable for bottom-mount horizontal applications. The connector is shielded and includes pick-and-place and solder retention features for automated assembly. Electrical specifications include a maximum current rating of 1.8A (with per-contact limits: 1A on contacts 1 and 5, 0.5A on contacts 2-4) and a maximum voltage rating of 30VAC. It offers a durability of 10,000 mating cycles and operates over -30°C to 85°C. Contact resistance is 30 mΩ max, and capacitance between adjacent contacts is 2 pF max. Insertion force is 35 N max, removal force 8 N min. The connector is RoHS3 compliant and has MSL 1. It is designed for use in portable devices such as mobile phones, digital cameras, and music players, as noted in the ZX series datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.78 | $0.78 |
| 50+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum 1.8A total, with per-contact limits: 1A on contacts 1 and 5, 0.5A on contacts 2-4.
30 VAC maximum.
Surface mount, right angle; through hole (shell).
Minimum 10,000 cycles.
-30°C to 85°C.
Yes, it is shielded.
USB 2.0.
