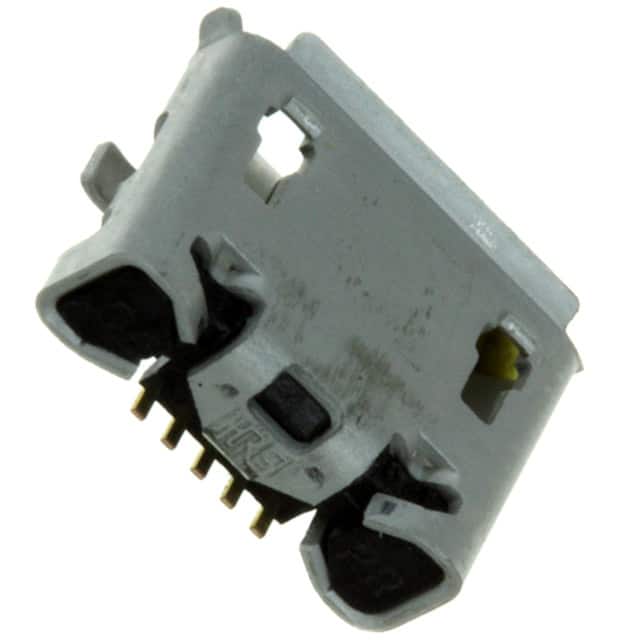

The Hirose ZX62-B-5PA(33) is a USB 2.0 Micro B receptacle connector designed for compact electronic devices. It features a surface mount, right-angle mounting configuration with bottom mount and horizontal orientation, ideal for space-constrained PCB designs. The connector is shielded to reduce electromagnetic interference and includes solder retention and pick-and-place features for efficient automated assembly.
The connector supports USB 2.0 data transfer rates and offers a current rating of 1.0 A per pin for signal contacts, with higher ratings of 1.8 A per pin on power pins (pin 1 and 5) and 0.5 A per pin on other power pins (pin 2-4). The maximum voltage rating is 30 VAC. Electrical performance includes contact resistance of 30 mOhm maximum and insulation resistance of 100 MOhm minimum at 500 VDC. Capacitance between contacts is 2 pF maximum.
Mechanically, the connector is rated for 10,000 mating cycles with an insertion force of 35 N maximum and withdrawal force of 8 N minimum. It operates over a temperature range of -30 C to +85 C. The connector is available in tape and reel packaging suitable for high-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.70 | $0.70 |
| 50+ | $0.67 | $0.67 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.54 | $0.54 |
| 3,500+ | $0.56 | $0.56 |
| 7,000+ | $0.54 | $0.54 |
| 10,500+ | $0.52 | $0.52 |
| 17,500+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5
The current rating is 1.0 A per pin for signal contacts, 1.8 A per pin for power pins 1 and 5, and 0.5 A per pin for power pins 2 to 4.
30 VAC
Surface mount, right angle with bottom mount and horizontal orientation.
-30 C to +85 C
10,000 cycles
