| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

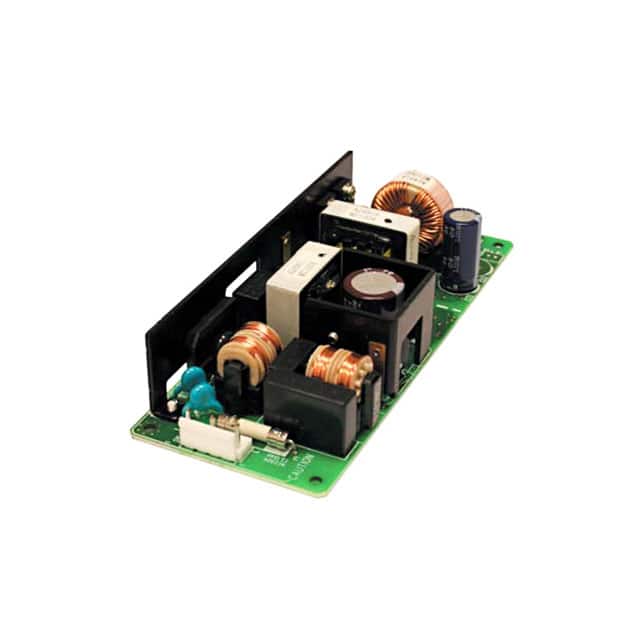

The TDK Corporation ZWS75BAF-5/L is an open-frame AC DC converter designed for ITE (Commercial) applications. It provides a nominal output voltage of 5V and a maximum output power of 75W, with a maximum output current of 15A.
Key electrical specifications include an input voltage range of 85-265VAC, an efficiency of 84%, and features such as adjustable output, DC input capability, load sharing, PFC, and universal input. The operating temperature range is -10°C to 70°C with derating.
This converter is designed for chassis mounting and meets various compliance standards including CE. It has an isolation voltage of 3kVAC (Input-Output) and 2kVAC (Input-FG).
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. The unit dimensions are 150.0mm x 50.0mm x 33.0mm.
The nominal output voltage is 5V.
The maximum output power is 75W.
The operating temperature range is -10°C to 70°C with derating.
It requires chassis mounting.
The efficiency is 84%.
